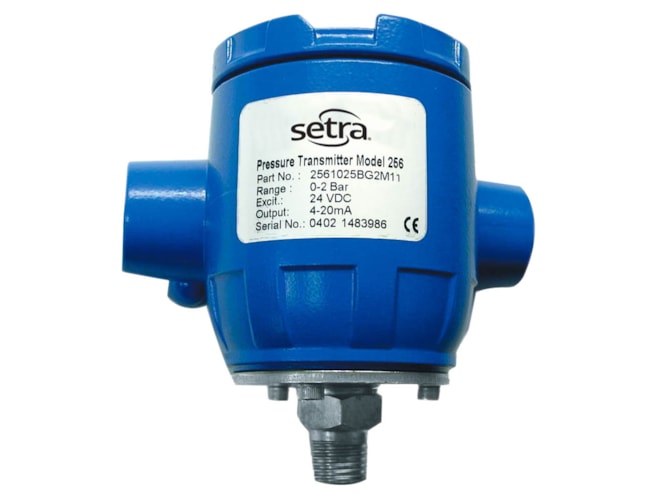

Setra 256 Pressure Transducer
Aluminum enclosure specifically designed for weatherproof service, available in a variety of gauge pressure ranges and corrosive fluid compatible
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- High Accuracy
- NEMA 4/IP65
- Wide Operating Temperature Range
- Compatible with a Wide Range of Gases or Liquids
- Corrosive Resistant All Stainless Steel Wetted Parts
- Choice of Voltage or Current Output
- Operates on Low-Cost Unregulated Power Supply
The Setra 256 industrial pressure transducer is one of the most rugged and reliable sensors available. The Model 256 is packaged in a die-cast aluminum enclosure that is specifically designed for NEMA4/IP65 service. Setra's robust capacitive design is resistant to environmental effects, such as shock, vibration, temperature and EMI/RFI. Superior mechanical and thermal stability is. achieved through Setra's patented variable capacitance sensor. Its fundamentally simple design features an insulated electrode plate in close proximity to the sensor diaphragm, which forms a variable capacitor. As pressure increases or decreases, the capacitance changes. This change in capacitance is detected and converted to a linear analog signal by Setra's custom ASIC based circuit, producing an output signal proportional to applied pressure.
Available in a wide variety of gauge pressure ranges, the 256 also features adjustable potentiometers for zero and span settings.
Only 3.6" high x 4.0" wide, the Model 256 is designed for compact installations. The removable cover provides easy access to the internal terminal strip for wiring. Installation is quick and easy with 1/2 inch internal threaded conduit ports for electrical termination.
Applications for the Setra Model 256:
- Process Control
- Chemical Processing
- Agricultural Irrigation Systems
- Natural Gas Pipeline Monitoring
- Grain Processing
- Industrial Pressure Monitoring
