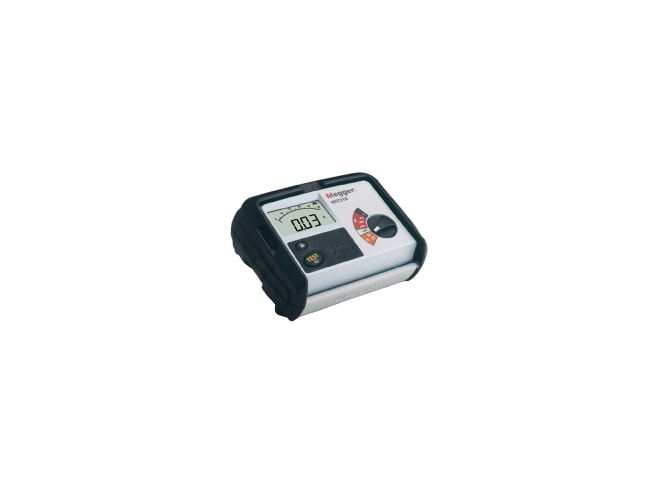

Megger MIT320 Insulation Tester
Insulation resistance tester with digital/analog display
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- 1000 V, 500 V, 250 V DC test voltages
- 10 kΩ to 999 MΩ
- <2.5% to 5% accuracy
- Rubber armored case
- Live circuit warning
- Weatherproof to IP54
The Megger MIT320 insulation tester features the popular Megger digital/analog display. Large 20mm high characters provide very clear readout, combined with an analog arc for the feel of an analog instrument with a true analog response.
Designed to take the bashing that testers receive on site, the Megger MIT insulation testers are rubber armoured. The rigid display cover folds right out of the way during testing and locks down to protect the display when it is finished.No buried functions mean it is obvious how to use the Megger MIT320. Color coded ranges help test selection, reducing testing time, and help with fault location. A user guide in the lid provides all the basic information. It hangs comfortably around the neck for hands-free use because the instrument is carefully balanced. Continuity and buzzer testing starts automatically on connection to the circuit. Both the display and the range selected can be read in the dark because the MIT320 has a backlit display.
To protect the user and the tester from incorrect use the MIT series all have an extensive range of features known as the Megger Intelligent Safety System.Megger MIT320 Safety Features Include:
- Safety Interlock – prevents unsafe connection of test leads.
- Safe contact detectors – Even if the MIT is connected to a live circuit while on continuity setting the tester will remain safe and not be damaged.
- Live voltage warning – alerts the operator when a circuit voltage over 25 V exists.
- Safety lockout – Prevents the test from operating when the circuit voltage is >50 V.
- Continuity check – prevents a continuity test or buzzer test on a live circuit.
All the MIT instruments meet or exceed the UK and International Wiring Regulations, including requirements of BS7671 and VDE 0413 parts 1 and 4, HD 384, IEC 364, NFC15-100, NEN3140, ES59009 and EN 61557. In addition the range meets the requirements of IEC 61010-1 for safe connection to a 440 V Installation Category III supply (600 V Phase to Earth).
The MIT300 series has applications in all aspects of domestic, commercial and industrial electrical contracting, building maintenance, testing, inspection and servicing. Combining both insulation testing and continuity testing, each instrument caters for all aspects of fixed wiring installations. Further applications can be found in panel building, testing of motors, generators, switchgear and power tools, street lighting and low volume manufacturing environments.
The MIT320 is supplied with a full 3 year warranty.
