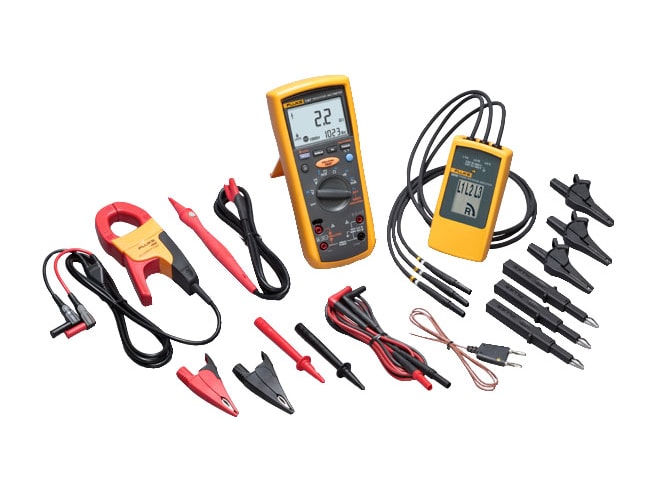

Fluke 1587/MDT Advanced Motor & Drive Troubleshooting Kit

Includes a Fluke 1587 insulation multimeter, Fluke i400 current clamp, and a Fluke 9040 phase rotation indicator.

Fluke 1587/MDT Advanced Motor & Drive Troubleshooting Kit
Fluke 1587 Insulation Multimeter
Fluke i400 AC Current Clamp
Fluke 9040 Phase Rotation Indicator

Retired products cannot be ordered

The Fluke 1587/MDT FC Advanced Motor & Drive Troubleshooting Kit is the replacement

View Company Reviews

Part Number

FLUKE-1587 MDT

Manufactured

By Fluke

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Features

Fluke 1587
- Insulation Test Voltages: 50V, 100V, 250V, 500V, 1000V
- Insulation Test: 0.01 MΩ to 2.0GΩ
- AC/DC voltage
- DC millivolts
- Insulation test smoothing reading
- Frequency measurement
- Capacitance measurement
- Diode test
- Temperature measurement
- CAT III 1000V, CAT IV 600V measurement category
Fluke i400 Clamp Meter
- Measures up to 400A AC
- 1 - 400A continuous current range
- 2% + 0.06A basic accuracy
- 1mA / amp output
- CAT IV 600V / CAT III 1000V Safety rating
- Max. conductor 32mm diameter
Fluke 9040 Phase Rotation Indicator
- 3 phase indication
- Indication of phase rotation
- 40-700 V voltage range
- 15-400 Hz frequency range
- Clear LCD display
- Continuous operating timer
- IP40 dust/water resistance
- CAT III 600 V overvoltage rating
- No battery required

The Fluke 1587/MDT advanced electrical troubleshooting kit features products that have been specifically selected for both troubleshooting and preventative maintenance applications. Establishing preventative maintenance programs are becoming critical to maintaining the uptime of electrical equipment and can significantly reduce both planned and unplanned downtime. Unplanned downtime costs are difficult to calculate, but often significant. For some industries, it can represent 1% to 3% of revenue (potentially 30% to 40% of profits) annually.

The Fluke 1587/MDT advanced electrical troubleshooting kit includes the following products:

Fluke 1587 Insulation Multimeter

The Fluke 1587 insulation multimeter has a large display with backlight and measures AC/DC voltage, DC millivolts, AC/DC milliamps, resistance (Ω) and continuity. For added user protection the meters have live circuit detection which prevents an insulation test if voltage greater than 30V is detected. The Fluke 1587 also has auto-discharge of capacitive voltage as an added user protection. The auto power off feature saves battery life.

Fluke i400 AC Current Clamp

The Fluke i400 AC current clamp is a single range 400A AC current clamp with current output via safety shrouded banana plugs. The clamp is compatible with most Fluke multimeters or any other current measurement device that accepts 4mm-shrouded banana plugs and has an AC milliamp range. The division ratio for the Fluke i400 is 1000:1.

Fluke 9040 Phase Rotation Indicator

The Fluke 9040 phase rotation indicator is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications.
