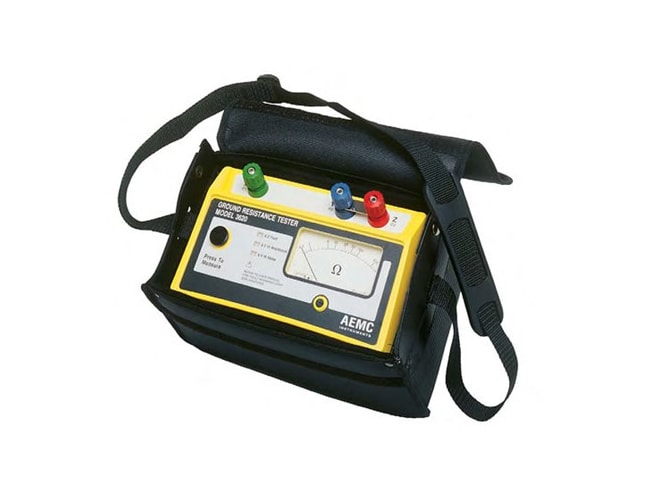

AEMC 3620 Ground Resistance Tester

Fast and accurate ground resistance measurement from 0.5 to 1000 Ω.

Features

  • Fall-of-Potential method for 2- and 3- point ground resistance tests
  • Direct reading on large analog display 0.5 to 1000 Ω and easy 25 Ω readings
  • Large 3.1" (77 mm), easy-to-read scale for accurate readings
  • Built-in battery check
  • Three color-coded terminals
  • Large Press-to-Measure button
  • Portable and compact
  • Extremely simple to operate: connect - press - read
  • Designed to reject high levels of nois and interference
  • Double insulation
  • CE Mark

The AEMC 3620 analog ground resistance tester performs ground resistance measurements from 0.5 to 1000Ω with speed and accuracy. The 3620 features three-terminal operation for Fall-of-Potential earth/ground resistance and also may be used for 2-Point tests. The 3620 is the ideal instrument for electrical contractors, power utilities, REAs, telephone and inspectors who must check ground to determine compliance with NED, OSHA and other specifications.

The large 3.1" logarithmic analog scale is easy to read and includes separate markings for 25 Ω. A large Press-to-Measure button allows for easy measurements. A manual zero adjust is provided for accurate readings. Color-coded binding post terminals are easy-to-use with banana plug and spade lug inputs.

The heavy duty ABS case is O-ring sealed against dust and water, and the Press-to-Measure button is also sealed. The ground tester 3620 is battery powered for convenient use in remote field applications. Mechanical and safety specifications, such as vibration and drop test, meet or exceed IEC standards, to ensure safe and reliable field use.

The AEMC Model 3620 Ground Resistance Tester ships complete with soft carrying case, batteries and user manual. The AEMC Model 3620 is also available in multiple kit configurations.

150 ft Kit (2135.10) 300 ft Kit (2135.11)
  • Meter
  • (2) 150 ft. color-coded leads on spools
  • 30 ft. lead
  • (2) 14.5" T-shaped aux. ground electrodes
  • (1)Set of 5 fork terminals
  • 100 ft tape measure
  • Carrying bag
  • Meter
  • (2) 300 ft. color-coded leads on spools
  • (2) 100 ft. color-coded leads
  • (2) 14.5" T-shaped aux. ground electrodes
  • (1)Set of 5 fork terminals
  • 100 ft tape measure
  • Carrying bag
AEMC Model 3620 Ground Resistance Tester Specifications
Range 0.5 to 1000 Ω
Resolution 10 mΩ
Test Current 10 mA
Resistance measurement frequency 128 Hz square wave
Accuracy ±5 % of reading + 0.1% of galvanometer scale length
Auxiliary electrode influence Rz 3000 times the reading up to 50 kΩ Ry 50 kΩ
Withstanding voltage 250 V RMS with spikes of 3000 V AC or 1000 V DC
Power source Eight 1.5 V "AA" alkaline batteries
Battery life 1680 15-second tests (approximately)
Fuse protection High breaking capacity 0.1 A, > 250 V, 0.25 x 1.25"
Display Analot pivot movement
Connection Color-coded terminals accept spade lugs with minimum gap of 6 mm or standard 4 mm banana jacks
Scale 3.1" (77 mm) white scale w/black pointer; one scale per range
Operating temperature 14°to 131°F (-10° to 55°C)
Storage temperature -40°to 158°F (-40° to 70°C), 0 to 90% RH with batteries removed
Temperature influence 5% per 10°C
Relative humidity 20 to 90%
Case Heavy duty, ABS
Mechanical shock IEC 68-2-27
Vibration shock IEC 68-2-6
Drop test IEC 68-2-32
Environmental O-ring sealed against dust and water to IP50
Safety rating EN 61010-1, CAT III, Pollution degree 2, 24 V
Agency approval Emission: EN 50081-1
Immunity: EN 50082-1
Double insulation Yes
CE Mark Yes
