Bently Nevada TK-3 Proximity System Test Kit

Name: Bently Nevada TK-3 Proximity System Test Kit
Availability: BackOrder

Simulates shaft vibration and position for calibrating Bently Nevada monitors and proximity probes.

Call 1-800-884-4967 for pricing

View Company Reviews

Part Number

177313-01-01

Manufactured

By Bently Nevada

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Product Specs

Features

Light weight and portable
Maintenance-free electric drive powered
Industrial-strength case dramatically improves durability and better protects the precision devices inside
Detachable spindle micrometer with magnetic base
- Allows users to carry only the micrometer to the probe location rather than the entire test kit
Universal probe mount accommodates probe diameters from 5 to 19mm
- Eliminating the need for multiple adapter collars

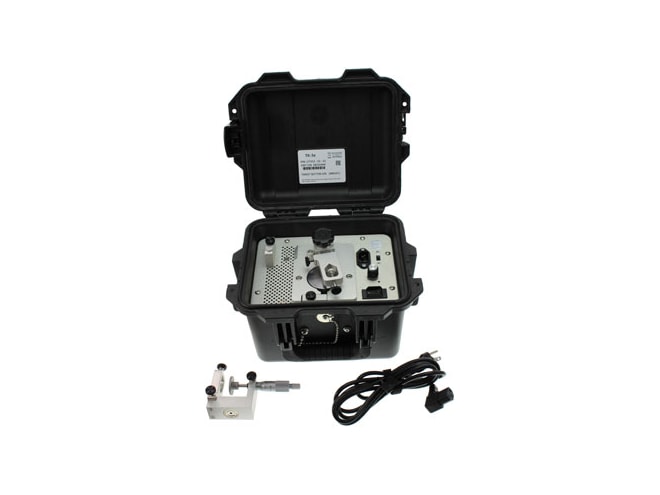

The Bently Nevada TK-3 Proximity System Test Kit simulates shaft vibration and position for calibrating Bently Nevada monitors. In addition to verifying the operating condition of monitor readouts, the TK-3 is also used for both static and dynamic verification of proximity probes. A properly calibrated system ensures that the transducer inputs and the resulting monitor readings are accurate.

The system uses a removable spindle micrometer assembly to check the transducer system and position monitor calibration. This assembly features a universal probe mount that will accommodate probe diameters from 5 mm to 19 mm (0.197 to 0.75 in). The mount holds the probe while the user moves the target toward or away from the probe tip in calibrated increments and records the output from the Proximitor Sensor using a voltmeter. The spindle micrometer assembly also features a convenient magnetic base for ease of use in the field.

Vibration monitors are calibrated using the motor-driven wobble plate. A swing-arm assembly located over the wobble plate holds the proximity probe in place. This assembly uses a universal probe mount, identical to that used with the spindle micrometer assembly. By using the absolute scale factor of the proximity probe in conjunction with a multimeter, the user adjusts the probe to find a position where the desired amount of mechanical vibration (as determined by peak-to-peak DC voltage output) is present. No oscilloscope is needed. The user can then compare a vibration monitor's reading to the known mechanical vibration signal input viewed by the proximity probe. The mechanical vibration signal from the TK-3 can range from 50 to 254 μm (2 to 10 mils) peak-to-peak.
