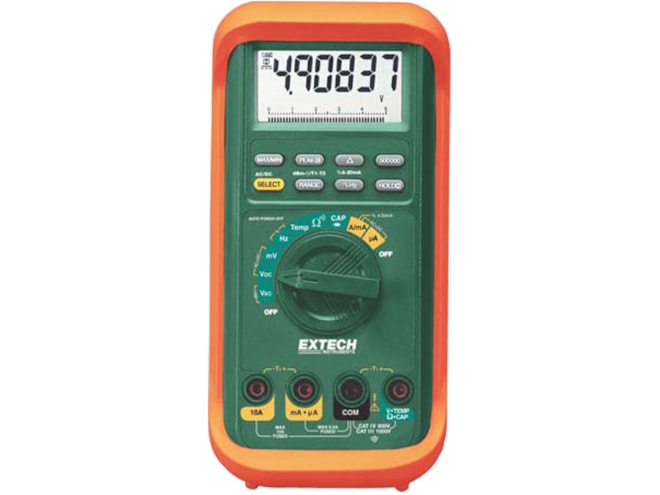

Extech MM570A MultiMaster Multimeter
Full featured, high resolution multimeter with CAT IV-600V safety rating and Type K temperature input.
Overview
Features
- Full range multimeter functions with 0.02% basic DCV accuracy and up to 100kHz True RMS ACV bandwidth
- 50,000 count (500,000 for DCV and Hz) backlit LCD display with bargraph
- Special True RMS combination AC+DC function for measurements of rectified AC (non-symmetrical) voltage & current waveforms
- Filtered frequency function with adjustable trigger levels for variable speed motor drives and high voltage applications
- AC/DC current to 10 A with 0.01 µA resolution
- 4 to 20 mA, displayed as 0-100% for process current measurements
- Capacitance, Frequency, Resistance, Continuity, Duty cycle and Diode tests with 100 V input protection on all functions
- Dual input Temperature function -58 to 1832°F (-50 to 1000°C ) with T1, T2 and T1-T2 display in °F or °C
- High resolution to 1 µV, 0.0001 Hz, 0.01 Ω, 0.01 µA and 0.1°
- Max/Min recording with autoranging, Auto Power off, Relative & Hold, Peak function captures transient pulses
Description
The Extech MM570A MultiMaster multimeter has a full range of multimeter functions with high resolution to 0.1 µA/0.1 mV and CAT IV-600V safety rating. With a 50,000 count (500,000 for DCV and Hz) backlit LCD display with bargraph, the MM570A offers 0.02% basic DCV accuracy. A filtered frequency function, with adjustable trigger levels, is used for variable speed motor drives and high voltage applications. The Extech MM570A also offers T1, T2 and T1-T2 dual Type K input temperature display in °F or °C.
Measuring AC/DC current to 10 A with 0.01 µA resolution, the Extech MM570A MultiMaster multimeter also features a special true-RMS combination AC+DC function for measurements of rectified AC (non-symmetrical) voltage and current waveforms. Other functions of the MM570A include 4 to 20 mA, displayed as 0-100%, for process current measurements, max/min recording with auto-ranging, capacitance, frequency, resistance, continuity, duty cycle and diode tests.
Additional features of the Extech MM570A MultiMaster multimeter include auto power off, relative and hold, up to 100kHz true-RMS ACV bandwidth, 1000V input protection on all functions. A peak function captures transient pulses and on power-up, the MM570A defaults to the last set function. Optional Windows compatible Extech SW810A MultiMaster Software and optically isolated cable are available for use with this Extech multimeter. This software allows for data transfer to a PC for further analysis.
The Extech MM570A MultiMaster multimeter ships complete with:
- Test leads
- Protective holster
- Type K thermocouple probe (-22 to 572°F/-30 to 300°C)
- Stand
- 9V battery
Specification | Range | Max Resolution | Basic Accuracy |
---|---|---|---|
DC Voltage | 500 mV, 5 V, 50 V, 500 V, 1000 V | 0.001 mV | ±(0.02% + 2d) |
AC Voltage | 500 mV, 5 V, 50 V, 500 V, 1000 V | 0.01 mV | ±(0.4% + 60d) |
DC Current | 500 μA, 5000 μA, 50 mA, 500 mA, 5 A, 10 A | 0.01 μA | ±(0.1% + 20d) |
AC Current | 500 μA, 5000 μA, 50 mA, 500 mA, 5 A, 10 A | 0.01 μA | ±(0.7% + 50d) |
Resistance | 500 Ω, 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 50 MΩ | 0.01 Ω | ±(0.07% + 2d) |
Capacitance | 50 nF to 9999 μF | 0.01 nF | ±(0.8% + 3d) |
Line Frequency | 5 Hz to 200 kHz | 0.0001 Hz | ±(0.002% + 4d) |
Logic Frequency | 5 Hz to 2 MHz | 0.0001 Hz | ±(0.002% + 4d) |
Temperature | -58 to 1832°F (-50 to 1000°C) | 0.1° | ±(0.3% + 1°C/2°F) |
Duty Cycle | 0.1% to 99.99% | 0.01% | ±(3d/kHz + 2d) |
Dimensions | 7.32 x 3.42 x 1.39" (186 x 87 x 35.5mm) | ||
Weight | 0.75lb (340g) |
