AEMC Model 5070 Megohmmeter
$4,075.00
$3,871.25

2130.30

AEMC

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • True Megohmmeter
  • Test voltage combinations of 500 V, 1000 V, 2500 V and 5000 V
  • Insulation measurements from 30 kΩ to 10,000 GΩ (10 TΩ)
  • Selectable and programmable test voltage (40 to 5100 V)
  • Automatic step voltage with programmable step and dwell times
  • Programmable temperature compensation of resistance readings
  • Large graphic display with five line alphanumeric display and graph of all test results
  • Automatic calculation of DAR, PI and DD ratios
  • Direct measurement and display of Capacitance and Leakage Current
  • Display resistance, test voltage and run time
  • Programmable test run times and PI ratio times
  • Smooth and Alarm functions
  • Automatic test inhibition (if live sample > 25 V)
  • Automatic discharge and display of discharge voltage
  • Graphic and digital display of test voltage, resistance and more
  • Bright blue electroluminescent backlight
  • Programmable test voltage lock-out
  • Programmable alarm setting
  • Auto power-down when not in use
  • AC or DC powered with rechargeable NiMH batteries
  • RS-232 interface for direct printing of results
  • 128 kB memory for storing extensive field test data
  • Configure instrument and run tests from a PC
  • Includes DataView software for data storage, real time display, analysis and report generation
  • Rugged, weatherproof field case
  • Designed and built to IEC safety standards
  • EN 61010-1, 1000V Cat. III
  • Double Insulation
  • CE Mark

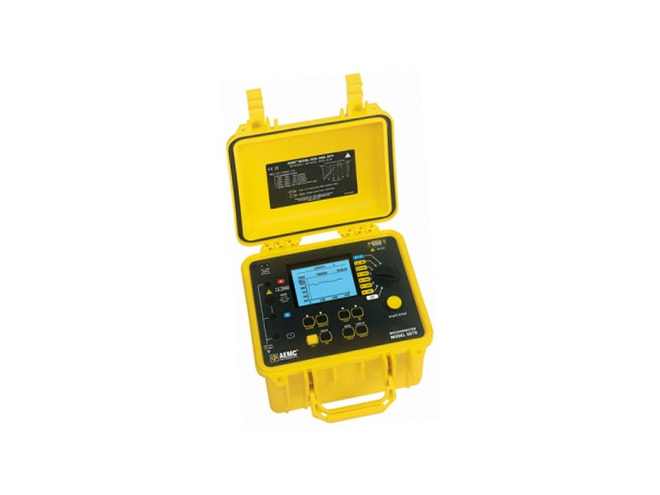

The AEMC model 5070 is a portable, 5000 V megohmmeter that is one of the most innovative products in its class on the market today. The 5070 is the culmination of years of analyzing how megohmmeters are used in everyday applications and incorporating advanced features and functions to automate and facilitate the testing process for these applications.

Testing at 500, 1000, 2500 and 5000 volts, the AEMC model 5070 megohmmeter provides insulation measurements from 30 kΩ to 10 TΩ. Also available are programmable and selectable test voltages from 40 to 5100 V as well as programmable temperature correction of resistance readings. The 5070 includes advanced features such as automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD). The PI ratio times are also user defined. The 5070 displays the test voltage, insulation resistance and the leakage current during and after the test. Capacitance of the sample and discharge voltage present at the test leads is displayed at the conclusion of the test.

The AEMC Model 5070 is the only megohmmeter to offer both a graphical plot of the test right on the instruments, as well as a digital presentation of the test results. It has a large graphic display with five line alphanumeric display and graph. It also offers the ability to program up to three step voltage profiles, each containing up to five steps. The 5070 also offers additional functionality in that an RS-232 port provides the ability to configure the units from a PC and run the test from the PC. Automatic documentation of test conditions and test results eliminates the need for writing down information. Test reports can be generated directly from the instrument to a printer or through the PC using the DataView graphing and analysis software provided.

The AEMC model 5070 was designed with the highest level of safety features built in and conforms to the most recent international insulation and continuity testing standards including EN 61010-1 and 600V CAT III. Packaged in a rugged insulated case, this megohmmeter incorporates test inhibit capabilities which will not allow test voltages to be generated if a live sample is detected. The test terminals are recessed to ensure operating safety. The test leads, rated for 5000V for both testing and measurement, are the only truly safety approved 5000V leads on the market today. The 5070 can be operated from an internal rechargeable battery system or from AC line power.

Our AEMC Model 5070 megohmmeters ship complete with:

  • Accessory pouch
  • 3 color-coded test leads with integral 5 kV rated hippo clips
  • Jumper lead
  • Rechargeable battery pack
  • Power cord (120 V)
  • DataView software
  • RS-232 DB9 F/F 6 ft null modem cable
  • User manual

AEMC model 5070 megohmmeter specifications:

Insulation Tests
Test Voltage/Range 500 V: 30 kΩ to 2000 GΩ (2 TΩ)
1000 V: 100 kΩ to 4000 GΩ (4 TΩ)
2500 V: 100 kΩ to 10,000 GΩ (10 TΩ)
5000 V: 300 kΩ to 10,000 GΩ (10 TΩ)
User Selectable Test Voltage (programmable) 40 to 1000 V: 10 V increments
1000 to 5100 V: 100 V increments
Short Circuit Current < 1.6 mA ± 5%
Accuracy 1 kΩ to 40 GΩ: ±5% of reading ± 3 cts
40 GΩ to 10 TΩ: ±15% of reading ± 10 cts
DAR (1 min/30 sec) 0.02 to 50.00
PI (10 min/1 min & user programmable) 0.02 to 50.00
DD : current/test voltage + capacitance) 0.02 to 50.00
Capacitance Check 0.005 to 49.99 µF; max resolution 1 nF
Leakage Current Measurement 0.00 nA to 3 mA; max resolution 1 pA
Programmable Run Time 1 min to 49 hours 59 min
Smooth Function (user selectable) Digital filtering stabilized display readings
Automatic Step Voltage 3 profiles, each containing 5 steps programmable from 40 to 5100 V. Dwell time programmable from 1 min to 10 hours per step. Maximum total time for 5 steps is 59 hours 59 min
Temperature Correction Operator programmable reference temperature and device under test temperature with automatic temperature correction of resistance
Discharge After Test Automatic
Discharge Voltage Display Yes
Voltage Test/Safety Check 0 to 1000 VAC/DC (16 to 420 Hz); 1 V resolution
Voltage Warning Indicator Yes > 25 V
Test Inhibition Yes > 25 V
Guard terminal Yes, adjustable from 25 to 1000 V
Power Source Battery: 8 Rechargeable NiMH batteries
Line Power: 85 to 256 VAC (50/60 Hz)
Mechanical
Dimensions 10.63 x 9.84 x 7.09"
Weight 9.5 lbs
Protection Index IP53
Display
Backlight Blue electroluminescent
Display Size 3.75 x 3"
Display Graphical: 320 x 240 resolution
Communication
Direct to Printer Yes, preset format
Memory 128 kB
Reading Intervals (programmable) 5 sec to 15 min
Test Voltage Display Yes
Elapsed Time Display Yes
Real Time/Date Display Yes
Test Voltage Lockout User programmed
Storage of Test Results Stores over 1500 test results
Communication Port RS-232
Software DataView (included)
PC Operation of Instrument Yes

Test Leads

AEMC Test Leads
Set of 3, color-coded 10ft 5kv safety leads with alligator clips
$407.00
AEMC Test Leads
Set of 3, color-coded 5kv safety lead with integral hippo clips
$540.00

Cables

AEMC RS-232 Cable
PC to RS-232, DB9 F/F 6 ft Null Modem Cable
$16.95
In Stock

Batteries/Chargers

AEMC Rechargeable Battery
Replacement rechargeable battery (9.6 V)
$157.00

Accessories

Please consider these optional accessories.

AEMC Fuses
Set of 3 replacement fuses (0.1A, 380V, 5 x 20mm, 10kA) for AEMC 5050 and 5060 Megohmmeters
$28.50
AEMC 5000.60 Replacement Adapter
Replacement Adapter, RS-232 to USB 2.0 (for use with Models 3945-B, 1060, 5060, 5070 & 6250)
$34.95
