Testo 6340 Series Differential Pressure Transmitters

Differential pressure transmitters for low pressure environments with automatic zero point adjustment.

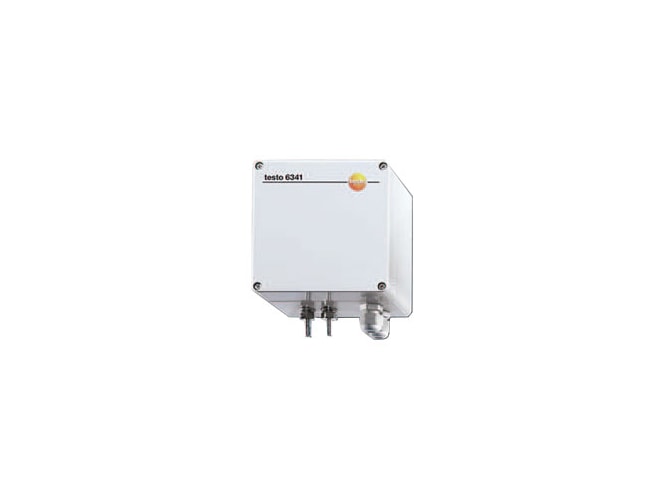

Testo 6341 Differential Pressure Transmitter
Testo 6342 Differential Pressure Transmitter
Testo 6343 Differential Pressure Transmitter
Testo 6344 Differential Pressure Transmitter

Retired products cannot be ordered

View Company Reviews

Manufactured

By Testo

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

Testo 6341/6343
- 0 to 10 Pa pressure range
- Zero point drift /Automatic zero point adjustment
- No temperature dependency - automatic zeroiong is performed at process temperature
- Overload-proof
- Optional display - Ordered as 6343
Testo 6342/6344
- 0 to 50 Pa pressure range
- Very low zero point drift and very good long-term stability due to optimized measurement cell
- Very low temperature dependency - temperature compensated measurement cell
- Optional display - Ordered as 6344

The Testo 6340 series differential pressure transmitters are an excellent choice for cleanrooms, operating rooms or any environment where low differential pressures must be maintained to avoid in-flow of potentially contaminated air. Conventional differential pressure transmitters require frequent and costly recalibration to ensure accuracy. The Testo 6340 series differential pressure transmitters (Model 6341/6343 only) are equipped with automatic zero point adjustment, eliminating the need for frequent calibration. The solenoid valves vent both sides of the pressure measurement cell in an hourly cycle. Consquently the microprocessor automatically corrects the zero signal resulting in high stability.

The Testo 6341 differential pressure transmitter features zero-point drift, high long-term stability and reproducibility, no temperature dependency (automatic zeroing is performed at process temperature) and is overload-proof. If greater than 140% of the measurement range is applied, the solenoid valves close and the cell and vented on both sides. The Testo 6341 is available with an optional display which is ordered as the Testo 6343.

The Testo 6342 differential pressure transmitter features very low zero-point drift as well as very good long-term stability and reproducibility from the optimized measurement cell. The Testo 6342 has a very low temperature dependency and is available with an optional display which is ordered as the Testo 6344.

Testo 6340 Series Differential Pressure Transmitter Specifications

Feature	Testo 6341/6343	Testo 6342/6344
Display	6343 only	6344 only
Measuring Range	0 to 10 Pa 0 to 1 mbar 0 to 04 inch H2O	0 to 50 Pa 0 to 5 mbar 0 to 02 inch H2O
Usable Measurement Range	-5% to 110% of fsv	-5% to 105% of fsv
Measuring Medium	Air, non-aggressive gases	Air, non-aggressive gases
Housing (ABS plastic)	6341: 120x122x85mm 6343: 120x122x105mm	6342: 80x120x73mm 6344: 120x122x75mm
Overload	200 times (above 25 mbar: 6 bar)	10 times (above 200 mbar: 2 times)
Zero Point Drift	None (automatic zero point adjustment)	0.5% of full scale value/year
