Features

  • True Megohmmeter®
  • Test voltage combinations of 500V and 1000V
  • Insulation measurements to 2000MΩ (2GΩ)
  • Automatic test inhibition if live sample >25V
  • Automatic discharge for operator safety
  • Resistance measurements to 400kΩ
  • Continuity measurements with 200mA test current
  • Alarm indication
  • Over-molded slip-proof holster for rugged field use
  • Supplied with a soft carrying case and test leads

The AEMC Model 1040 megohmmeter is an innovative, battery-powered digital insulation resistance tester. The 1040 incorporates the latest measurement technology and is specifically designed to the most recent international insulation and continuity testing standards as well as EN 61010-1, 300V, Cat. II, IEC 61557 environments.

Testing at 500 and 1000 volts, the AEMC Model 1040 measures insulation resistance, continuity, and resistance while incorporating a 600 V voltmeter which automatically detects and accurately displays AC/DC voltages in the test circuit on each of the insulation test voltage ranges. Above 25 V it also provides an audible and visual signal, and inhibits further tests, thus protecting the user and the meter. An exceptionally large digital/analog multi-function display with 345-segment bargraph provides clear and easy readings enhanced by a bright blue electroluminescent backlight.

AEMC Model 1040 megohmmeters offer many features including automatic detection of potentially dangerous voltages when connecting to a sample on the MΩ ranges as well as protection against external voltage surges and enhanced operator safety through automatic discharge of the tested sample. Additionally, the 1040 offers alarm programming for quick tests, lead resistance compensation for accurate continuity measurements, and display of the duration of the measurement for easy DAR and PI measurements.

The AEMC Model 1040 features rugged construction that is unique to megohmmeters. The ergonomic shape fits naturally into the hand and facilitates a firm grip on the meter. A slip-proof and shock-proof holster is directly over-molded on the high impact polycarbonate case. The case is rated IP44.

The AEMC Model 1040 megohmmeter ships complete with:

  • Test leads
  • Soft carrying case

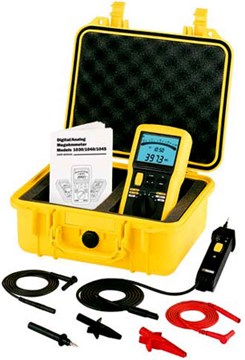

The AEMC Model 1040 megohmmeter is also available in a kit which includes:

  • Remote test probe
  • Field case
  • Test leads
Insulation Tests
Test Voltage
500 V 100 KΩ to 2000 MΩ (2 GΩ)
1000V 200 KΩ to 2000 MΩ
Short Circuit Current ≤ 3 mA
Accuracy
< 40 MΩ ±3% of reading ± 5 cts
> 40 MΩ ±3% of reading ± 2 cts
Voltage Test/Safety Check 0 to 600 V AC/DC
Voltage Warning Indicator > 25 V
Test Inhibition Yes > 25 V
Resistance Tests
Measurement Range 0.0 to 400 kΩ
Test Voltaget 7 to 9 V
Test Current 600 µA
Accuracy > 4 kΩ ±3% of reading ± 1 ct
Continuity Tests
Measurement Range 0.00 to 19.99 Ω
Test Current ≥ 200mA
Open Circuit Voltage 7 V
Accuracy ±3% of reading ± 1 ct
Display
Display Size 2 x 3"
Digital Display 4000-count
Analog Bargraph 34-segments
Backlight Blue electroluminescent
General
Power Source 6 x 1.5 V AA; performs > 3500 5 sec. tests
Dimensions 8.30 x 4.25 x 2.36"
Weight 1.81 lbs
Temperature Range
Operating 14 to 131°F
Storage -40 to 158°F
Safety
Safety Rating EN 61010-1-1, 300 V Cat. II, EN 61557
CE Mark Yes; UL listed

Test Leads

AEMC Test Leads
Set of 2, color-coded, 5 ft safety leads w/color-coded alligator clips
$47.50
In Stock

Cases

AEMC Carrying Case
Hands-free carrying case for AEMC Megohmmeters
$79.00

Accessories

Please consider these optional accessories.

AEMC Fuses
Set of 5 replacement fuses (0.63A, 600V, 6 x 32mm) for AEMC 1030, 1040, 1045 Megohmmeters
$15.95
