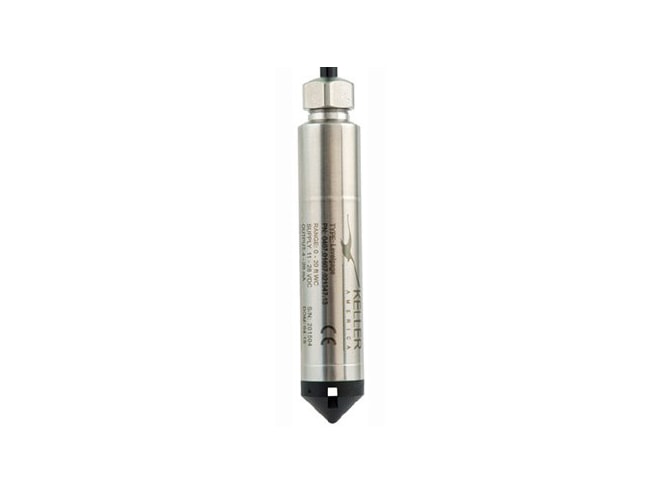

Keller Levelgage Submersible Level Transmitter

Level transmitter submersible to 900 feet of water, UL/cUL IS-approved, with choice of 4-20mA, 5VDC, or 10VDC ouput.

Features

  • UL/cUL IS-approved
  • NSF 61 and NSF 372 certifications (PE jacket only)
  • 4-20mA includes guaranteed lightning protection
    • Lifetime warranty against voltage surges
  • Ranges available from 0 to 3 up to 900ftWC
  • 316L SS, Polyamide & Fluorocarbon wetted materials
  • -10 to 60ºC operating temperature
  • IP68 environmental protection
  • 2-year warranty covers defects in materials & workmanship
  • Built in the USA (ARRA Section 1605 Compliant); CE certified

The Keller Levelgage submersible level transmitter is one of several Keller America models certified by UL to NSF/ANSI 61 and 372 standards for use in drinking water and IS-approved for use in hazardous location applications. The Levelgage can be used in a wide array of applications, including wastewater and water storage and distribution.

The Levelgage is assembled in the U.S to customer specifications, including custom pressure ranges, cable lengths, and a choice of analog outputs (current or voltage). Models equipped with 4 to 20mA analog output include guaranteed lightning protection at no additional cost. This feature protects the Levelgage from fast-rising transients and carries a lifetime guarantee against damage from electrical surge.

Keller 1820-28-A3 External Surge Protector
Keller 1820-28-A3 External Surge Protector

Lightning/surge protection of power supplies, readouts, and PLCs.

In Stock
$159.00
Keller 900001.0033 Stabilizing Weight
Keller 900001.0033 Stabilizing Weight

Zinc prop shaft anode .

In Stock
$37.00
Keller HU02216001 Cable Hanger
Keller HU02216001 Cable Hanger

In Stock
$30.50
Keller 900001.0034 Termination Enclosure
Keller 900001.0034 Termination Enclosure

NEMA 4X clear front enclosure with liquid-tight cable fittings & a terminal strip, allows for mounting a drying tube or bellows assembly.

$240.00
Keller 900001.0014 Pressure Test Adapter
Keller 900001.0014 Pressure Test Adapter

Pressure test adapter for the Levelgage and Acculevel.

In Stock
$280.00
Keller 900001.0002 Drying Tube Assembly
Keller 900001.0002 Drying Tube Assembly

Attaches directly to cable vent tube and intercepts water vapor.

In Stock
$28.50
Keller 900001.0009 Bellows Assembly
Keller 900001.0009 Bellows Assembly

Aneroid bellows attaches to cable vent, alternative to the drying tube.

In Stock
$45.00
FloCat STE-DISP Sensor Termination Enclosure with Display
FloCat STE-DISP Sensor Termination Enclosure with Display

Compatible with any manufacturer's transmitter & moisture protection method, outputs preprogrammed by Instrumart at no cost.

$650.00

This product can be used in the following applications:

Part Number Model Pressure Type Nose Pressure Range Output Type Accuracy Material Conduit Type Cable Type Cable Length Price Available
1916.00102.023212.13
Show Full Configuration
Levelgage IS
PSIG
Open Face Nose
0 to 15
4-20 mA (Includes guaranteed lightning protection)
Standard: ±0.25% FS Static [25°C], ±1% TEB
Stainless Steel
With conduit
2-conductor, Polyethylene, vented with conduit fitting
60 feet
 $571.50 23 in stock
1916.01302.023211.13
Show Full Configuration
Levelgage IS
PSIG
Open Face Nose
0 to 10
4-20 mA (Includes guaranteed lightning protection)
Standard: ±0.25% FS Static [25°C], ±1% TEB
Stainless Steel
With conduit
2-conductor, Polyethylene, vented with conduit fitting
50 feet
 $553.50 22 in stock
1916.01202.023211.13
Show Full Configuration
Levelgage IS
PSIG
Open Face Nose
0 to 5
4-20 mA (Includes guaranteed lightning protection)
Standard: ±0.25% FS Static [25°C], ±1% TEB
Stainless Steel
With conduit
2-conductor, Polyethylene, vented with conduit fitting
50 feet
 $553.50 9 in stock
1916.01202.023206.13
Show Full Configuration
Levelgage IS
PSIG
Open Face Nose
0 to 5
4-20 mA (Includes guaranteed lightning protection)
Standard: ±0.25% FS Static [25°C], ±1% TEB
Stainless Steel
With conduit
2-conductor, Polyethylene, vented with conduit fitting
25 feet
 $508.50 7 in stock
1916.01302.023216.13
Show Full Configuration
Levelgage IS
PSIG
Open Face Nose
0 to 10
4-20 mA (Includes guaranteed lightning protection)
Standard: ±0.25% FS Static [25°C], ±1% TEB
Stainless Steel
With conduit
2-conductor, Polyethylene, vented with conduit fitting
100 feet
 $643.50 5 in stock
1907.01302.023211.13
Show Full Configuration
Levelgage IS
PSIG
Standard Nose
0 to 10
4-20 mA (Includes guaranteed lightning protection)
Standard: ±0.25% FS Static [25°C], ±1% TEB
Stainless Steel
With conduit
2-conductor, Polyethylene, vented with conduit fitting
50 feet
 $553.50 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
