Future Design Controls Setup Charts
Starting at $25.00

Not in stock. Usually ships in 4-6 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET


  • Models available include:
    • R18-270 CCW - Partlow style
    • R18-272 CW - Honeywell style
    • R18-271 - Thermal paper

This product is an accessory for the following products:

Future Design Controls DR 5000 Chart Recorder
Circular chart recorder available with ink cartridge or thermal printing versions

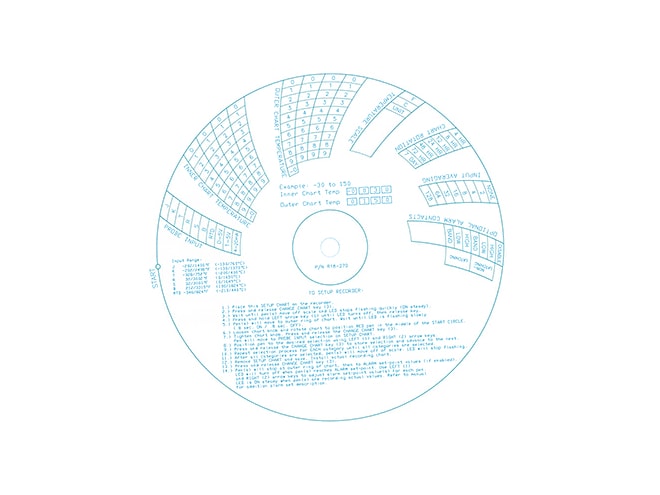

The DR5000 is the first recorder to "self document" setup configuration. This is accomplished by utilizing a setup chart providing the user with an "on the spot" manual providing detailed configuration instructions and documents the current setup for quick review by an operator.

Using these unique setup charts, users can set or alter operating parameters to fit their requirements. Input type, range, scales, alarms and time are all configurable by the user. A typical recorder setup takes less than 5 minutes and does not require the reference manual to complete.

6 setup charts are included in each box.
