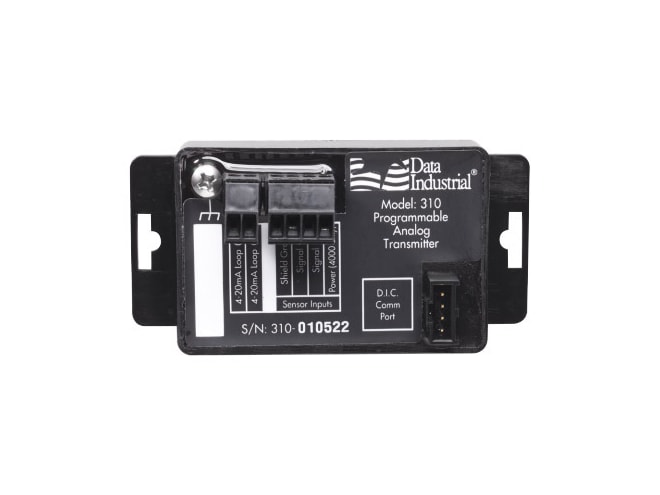

Badger Meter Model 310 Analog Transmitter
Programmable transmitter for converting flow signals to a linear 4-20mA analog signal
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Accuracy: ± 0.04% of reading over entire span
- Linearity: 0.1% of full scale
- Square and Sine Wave Input
- Power Requirements: Loop Input Voltage 9-35Vdc
- Input Frequency: 0.4 to 10 KHz
- Mounts on panels, DIN rails or enclosures
- Size: 1.75" x 2.75" x 1"
The Badger Meter Model 310 is a loop powered, programmable transmitter capable of converting signals from Badger Meter flow sensors to a linear 4-20mA analog signal. The 310 meters accept both standard square wave signals as well as sine waves making it a versatile transmitter for numerous applications.
With an onboard micro-controller and digital circuitry, the 310 is programmed from a computer which eliminates the need to adjust potentiometers while producing precise, accurate and drift free signals. This saves both time and money by lowering overall maintenance times. The Badger 310 also has an integral filter that the user can specify as 0 (to show true sensor readings) or 10 (for maximum dampening).
Badger Meter Model 310 transmitters feature a compact cast epoxy body that can easily be mounted to panels, DIN rails or enclosures. With multiple inputs, ease of use and a variety of enclosures, the Model 310 is a powerful and competitively priced transmitter for many of today's demanding applications.
