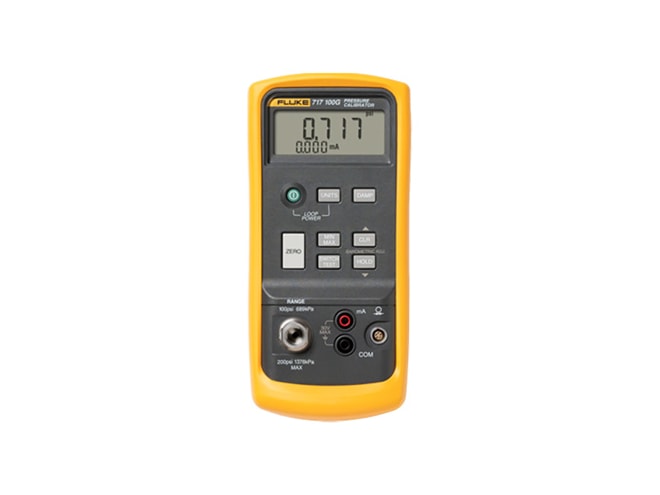

Fluke 717 Series Pressure Calibrator
Starting at
$1,499.99

Usually ships in 1-2 weeks [?]

instrumart-trustpilot-badge

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 9 models available
  • Compatible with Fluke 700 series differential, gauge and absolute pressure modules
  • Pressure measurement
    • Accuracy: 0.05% full scale
    • Max: up to 5000 PSI/345 bar
  • Current measurement
    • 0 to 24 mA
    • 0.015% +2 counts accuracy
    • 0.001 mA resolution
  • 1/8 NPT female pressure fitting

Fluke 717 pressure calibrators deliver outstanding performance, durability and reliability. Fluke calibrators are compact, lightweight, easy to carry and the push button interface makes the 717s easy to use. They are EMI tolerant, dust and splash resistant and feature a removable battery door for quick battery changes.

The Fluke 717 pressure calibrators can measure pressure up to 10,000 psi/700 bar when using Fluke 700 series pressure modules. The 717 calibrators are equipped with a 1/8" NPT female pressure fitting and are compatible with non-corrosive gases and liquids. The calibrators have a selection of eleven different engineering units and zero, min, max and hold functions.

The Fluke 717 can calibrate P/I instruments with simultaneous pressure and current measurement. The calibrator also has a pressure switch test function which captures set, reset and Deadband values of a pressure switch. The error percent calculation of mA measurements is ideal for quick "pass-fail" decisions.

Fluke 717 pressure calibrators also boast features including a long lasting battery life, a holster with test lead storage and they are compatible with Toolpack magnetic hanging system which enables hands-free operation.

The Fluke 717 pressure calibrator ships complete with:

  • Protective Yellow Holster with test lead storage
  • Test Leads and Alligator Clip
  • 9V alkaline battery
  • Instructions
  • NIST-traceable calibration report and data

Probes

Fluke 80AK-A Thermocouple Adapter
Type-K thermocouple mini-connector to dual shrouded banana plug inputs
$30.49
In Stock

Test Leads

Fluke TL76 Test Lead Set
One pair (red & black) of silicone test leads with right shrouded 4mm banana plugs and 2mm probe with 4mm removable lantern tip
$35.99
In Stock
Fluke TL40 Test Lead Set
One pair (red & black) of flexible silicone insulated leads with sharp needle point tips adjustable from 0 to 76mm
$45.99
In Stock
Fluke TL26A Test Lead Set
One pair (red & black) of 60in silicone-insulated leads, useable from -112 to 158°F (-80 to 70°C)
$60.99
Fluke TL221 Extension Set
One pair (red & black) of SureGrip silicone insulated leads with straight connectors on both ends and a pair of female couplers
$30.99
In Stock
Fluke TP912 Tips
Three sets of gold-plated and two sets of stainless steel tips, replacements for TL910 probes
$30.99
Fluke TP920 Test Probe Adapter Set
Three pairs (red & black) of push-on adapters: IC test adapters, extended probe tips, & alligator clips with 0.3in (7.6mm) max opening
$40.99
In Stock
Fluke H900 Test Lead Holder
Heavy duty construction with 10 slots for wires up to 0.3 inches (8mm) in diameter
$25.99
Fluke AC283 Pincer Clips
One pair of red and black nickel-plated, SureGrip pincers which open to 0.2in (5mm)
$45.99
In Stock
Fluke AC89 Piercing Test Clip
Pierces 0.01 to 0.06in (0.25 to 1.5mm) insulated wire
$45.99
Fluke TP80 Electronic Test Probes
One pair (red & black), for probing high density components or boards
$35.99
In Stock
Fluke TP74 Lantern Tip Test Probe
One pair (red & black), with 0.16in (4mm) banana-style spring contacts and nickel-plated brass ends
$20.49
Fluke TP38 Slim Reach Test Probes
One pair (red & black) of slender, stainless steel probes for accessing closely-spaced or recessed terminals
$20.49
In Stock
Fluke TL81A Deluxe Electronic Test Lead Kit
Pouch with red & black pairs of test leads, alligator clips, test probes, tip extenders, hook & pinch clips, IC probe tips, & bare spade lugs
$154.99
Fluke TLK-225 SureGrip Master Accessory Set
Includes all the SureGrip leads, clips, and probes in a handy roll-up pouch
$162.99
Fluke TLK-220 SureGrip Industrial Test Lead Kit
Includes small and large SureGrip alligator clips, lantern tip probes, and silicone test leads in a soft case
$152.99
Fluke TL238 SureGrip Test Lead Set
Insulated test probes, extenders, and silicone right angle to straight test leads for high energy environments
$81.99
In Stock
Fluke TLK290 Probe Set
Three flexible socket probes and 0.8in (20mm) alligator clip for use on motor and three phase sockets
$81.99
Fluke L215 SureGrip Test Kit
TP220 industrial test probes, TP280 probe extenders, TL224 insulated test leads, & L200 probe light in a foldable soft pouch
$101.99

Cables

Fluke TL932 Patch Cords
One pair (red & black) of 35.43 inch (90cm) PVC insulated leads with multi-stacking, nickel-plated 0.16 inch (4mm) banana plugs
$20.49
In Stock
Fluke TL930 Patch Cords
One pair (red & black) of 23.62 inch (60cm) PVC insulated leads with multi-stacking, nickel-plated 0.16 inch (4mm) banana plugs
$20.49
In Stock
Fluke TL935 Patch Cords
3 pairs of PVC insulated leads, 23.62, 35.43, & 47.24in (60, 90, & 120cm), with multi-stacking, nickel-plated 0.16 inch (4mm) banana plugs
$51.99

Holsters/Straps/Harnesses

Fluke H80M Protective Holster with Magnetic Hanging Strap
Shock-absorbent protective holster to enable hands-free work
$51.49
In Stock

Cases

Carrying cases, spare cases

Fluke C116 Soft Carrying Case
Adjustable padded space with a moveable Velcro divider for protection of two test tools
$40.99
In Stock
Fluke C345 Soft Case
Polyester carrying case with movable internal divider and outer zippered pouch with elastic strap and mesh accessory retainer
$91.99
Fluke C510 Leather Case
Oiled genuine top grain cowhide with heavy duty stitching and reinforced rivets
$81.99
In Stock

Accessories

Please consider these optional accessories.

Fluke L211 Probe Light Kit
L200 probe light, TL71 premium DMM test lead set, and C75 carrying case
$71.99
Fluke 750P Absolute Pressure Module
Wide pressure range selection, up to 1500 psia, digital communication to calibrators
$1,749.99
Fluke 750P Differential Pressure Modules
Differential pressure modules in 5 models with ranges up to 15 psi, digital communication to calibrators
$1,549.99
Fluke 750P Dual Pressure Module
Wide pressure ranges available, up to 300 psi, digital communication to calibrators
$1,749.99
Fluke 750P Gauge Pressure Module
±0.0175% reference uncertainty, 6-month and 1-year specifications, digital communication to calibrators
$1,549.99
Fluke 750P High Pressure Module
±0.0175% reference uncertainty, ranges up to 10000 psi (700 bar), digital communication to calibrators
$2,299.99
Fluke 750P Reference Pressure Modules
Wide variety of pressure ranges available, up to 10,000 psi, with digital communication to calibrators
$1,749.99
Fluke 750P Vacuum Pressure Module
Choose -5 psi (-350 mBar) or -15 psi (-1 bar) range, digital communication to calibrators
$1,749.99
Fluke CXT170 Extreme Case
Unbreakable, watertight, airtight, dustproof, chemical resistant and corrosion proof
$204.99
