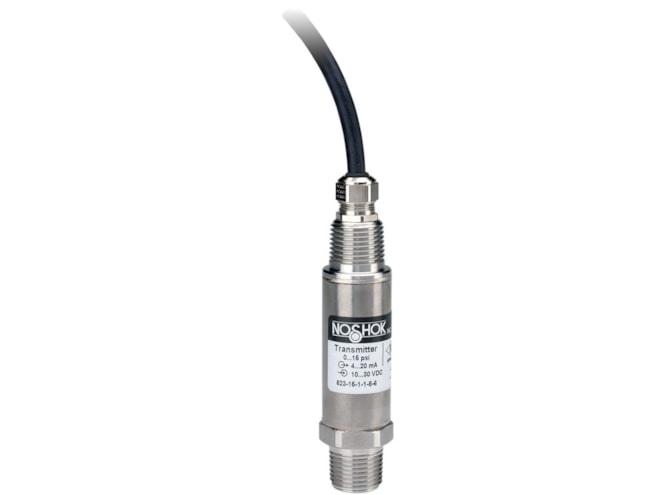

NOSHOK 623 / 624 Series Non-Incendive Pressure Transmitters

Name: NOSHOK 623 / 624 Series Non-Incendive Pressure Transmitters
Price: 559.72 USD
Availability: InStock

Non-incendive pressure transmitters for hazardous locations, ±0.25% accuracy with diffused semi-conductor & sputtered thin film sensor.

Starting at $559.72

View Company Reviews

Manufactured

By NOSHOK

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Internal (623) or front flush (624) diaphragm
Outputs:
- 4 to 20mA (2-wire)
- 1 to 5VDC (3-wire, low power)
- 0.5 to 4.5VDC (3-wire, low power)
±0.25% Full scale accuracy
≤±0.1% Full scale hysteresis
Pressure range options from vacuum to 15,000 psi
½in NPT conduit connection
FM and CSA approved
Class I, Division 2, Groups A, B, C, and D
- Non-Incendive, entity approval
Class II, Division 1, Groups E, F, and G
- Dust ignition-proof

The NOSHOK 623 / 624 Series Non-Incendive Pressure Transmitters combine the reliability and long life of diffused semiconductor and sputtered thin film strain gauge sensors with safe electronics for outstanding performance and value. These transmitters were designed for applications that require pressure measurement in hazardous environments. The pressure chamber is welded with no internal O-rings, gaskets or seals. The 623 transmitter includes an internal diaphragm while the 624 transmitter utilizes a front flush diaphragm.

The 623 and 624 pressure transmitters are available with a wide variety of pressure ranges to suit most applications. All units undergo extensive testing during the manufacturing process to ensure that the highest performance is achieved in the demanding environments found in today's applications.

NOSHOK transmitters are available with a standard threaded connection as well as a flush diaphragm configuration and are Factory Mutual approved. All models incorporate significant levels of RFI, EMI and ESD protection.

Applications for the NOSHOK 623 / 624 Pressure Transmitter

Hydraulic and pneumatic systems
Pumps and compressors
Test equipment and systems
HVAC systems
Power generation
Water and wastewater
Refrigeration equipment
Laboratory / Test equipment
Chemical / Petrochemical
Marine
Pipeline gas compressors
Oil field
Offshore

Spec Sheets

NOSHOK 623 / 624 Series Non-Incendive Pressure Transmitters Datasheet PDF (120 KB)

Manuals

NOSHOK 623 / 624 Series Pressure Transmitters Manual PDF (83 KB)

Manufacturer Stock

Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.

Part Number	Pressure Type	Pressure Ranges	Output Signal	Process Connection	SS Threaded Orifice	Cable Length	Price	Available
623-1000-1-1-2-6 Show Full Configuration	Gauge	0 to 1000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	16 in stock
623-1000-1-1-2-6-ST8 Show Full Configuration	Gauge	0 to 1000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Included	6ft	$574.86	16 in stock
623-3000-1-1-2-6 Show Full Configuration	Gauge	0 to 3000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	14 in stock
623-100-1-1-2-6-20 Show Full Configuration	Gauge	0 to 100 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	20ft	$611.21	10 in stock
623-500-1-1-2-6 Show Full Configuration	Gauge	0 to 500 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	7 in stock
623-500-1-1-2-6-ST8 Show Full Configuration	Gauge	0 to 500 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Included	6ft	$574.86	7 in stock
623-100-1-3-2-6 Show Full Configuration	Gauge	0 to 100 psig	1 to 5 Vdc, 3-wire, Low Power	1/4in NPT Male	Not included	6ft	$559.72	6 in stock
623-100-1-3-2-6-ST8 Show Full Configuration	Gauge	0 to 100 psig	1 to 5 Vdc, 3-wire, Low Power	1/4in NPT Male	Included	6ft	$574.86	6 in stock
623-300-1-1-2-6 Show Full Configuration	Gauge	0 to 300 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	5 in stock
623-300-1-1-2-6-ST8 Show Full Configuration	Gauge	0 to 300 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Included	6ft	$574.86	5 in stock
623-2000-1-1-2-6-20 Show Full Configuration	Gauge	0 to 2000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	20ft	$611.21	4 in stock
623-3000-1-3-2-6-ST8 Show Full Configuration	Gauge	0 to 3000 psig	1 to 5 Vdc, 3-wire, Low Power	1/4in NPT Male	Included	6ft	$574.86	4 in stock
623-1000-1-3-2-6 Show Full Configuration	Gauge	0 to 1000 psig	1 to 5 Vdc, 3-wire, Low Power	1/4in NPT Male	Not included	6ft	$559.72	3 in stock
623-1000-1-3-2-6-ST8 Show Full Configuration	Gauge	0 to 1000 psig	1 to 5 Vdc, 3-wire, Low Power	1/4in NPT Male	Included	6ft	$574.86	3 in stock
623-10000-1-1-2-6 Show Full Configuration	Gauge	0 to 10,000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	3 in stock
623-5000-1-1-2-6 Show Full Configuration	Gauge	0 to 5000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	3 in stock
623-5000-1-1-2-6-ST8 Show Full Configuration	Gauge	0 to 5000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Included	6ft	$574.86	3 in stock
623-2000-1-1-2-6 Show Full Configuration	Gauge	0 to 2000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	2 in stock
623-2000-1-1-2-6-ST8 Show Full Configuration	Gauge	0 to 2000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Included	6ft	$574.86	2 in stock
623-6000-1-1-2-6 Show Full Configuration	Gauge	0 to 6000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	2 in stock
623-6000-1-1-2-6-ST8 Show Full Configuration	Gauge	0 to 6000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Included	6ft	$574.86	2 in stock
623-15-1-1-2-6 Show Full Configuration	Gauge	0 to 15 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	1 in stock
623-1500-1-1-2-6 Show Full Configuration	Gauge	0 to 1500 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$559.72	1 in stock
623-15000-1-1-2-6-20 Show Full Configuration	Gauge	0 to 15,000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	20ft	$611.21	1 in stock
623-30/100-1-1-2-6 Show Full Configuration	Compound Gauge	-30 inHg to 100 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	6ft	$811.68	1 in stock
623-500-1-1-2-6-20 Show Full Configuration	Gauge	0 to 500 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	20ft	$611.21	1 in stock
623-8000-1-1-2-6-20 Show Full Configuration	Gauge	0 to 8000 psig	4 to 20 mA, 2-wire	1/4in NPT Male	Not included	20ft	$611.21	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
