Overview

Features

  • Multi-range design with a wide range of inputs
  • Minimum J, K, T thermocouple span: 400°F
  • Accurate measurement
  • Sensor break detection with selectable action
    • Upscale or downscale
  • High-load capacity
  • Space-saving and simple DIN rail mounting
Inor APAQ-LC temperature transmitters only function when calibrated & require specialized equipment to calibrate


The APAQ-LR transmitter has been discontinued and replaced by the APAQ R130 transmitter.

Description

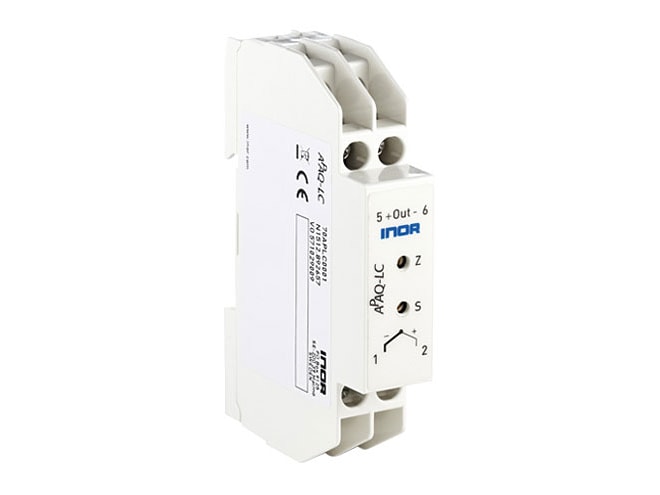

INOR APAQ-LC temperature transmitters are analog, 2-wire, DIN rail transmitters with selectable types and ranges for thermocouple input. The multirange design of the INOR APAQ-LC temperature transmitters reduces the cost of inventory.

The INOR APAQ-LC transmitter is designed for highest reliability and cost-efficiently manufactured. The transmitters combine attractive pricing with high quality and excellent industrial performance. The compact housing snaps onto a 35mm DIN rail and is equipped with rugged terminals for easy and safe wire connections.

The INOR APAQ-LC temperature transmitter covers five different thermocouple types, is continuously adjustable, and has a voltage linear 4 to 20mA output. The selection of measuring ranges and thermocouple types is made with internal solder pads. The fine adjustment is made with potentiometers in the front.

INOR APAQ-LC temperature transmitters are covered by a five-year warranty.
