Starting at $193.00

Overview

Features

  • Measuring Accuracy: ±2% of full-scale
  • Repeatability: ±0.5% of full-scale
  • Turn Down Ratio: 10:1
  • Flow Measuring Range (SS Body): 1/2" porting, 0.5–15 GPM (2–60 LPM); 3/4" – 1" porting, 1.5–50 GPM (60–200 LPM)
  • Temperature Range (SS Body): 20-225ºF (-7 to 107ºC)
  • Maximum Pressure (SS Body): to 500 PSIG (34 bar); With optional clear cover: to 200 PSIG (14 bar)
  • Flow Measuring Range (Poly Body): 0.5-15 GPM (2-60 LPM); With optional low-flow adapter: 0.1-4.0 GPM (0.4-15 LPM)
  • Temperature Range (Poly Body): 20-150°F
  • Maximum Pressure (Poly Body): 150 PSIG
  • 10' pigtail, 22 AWG multi-conductor cable standard

Description

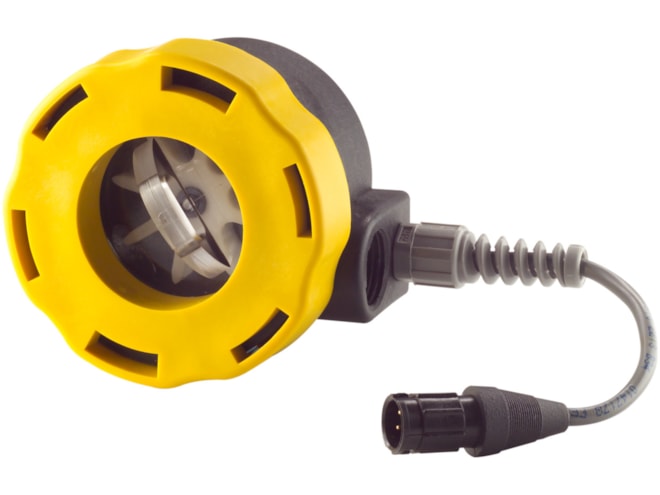

The AW-Lake FlowStat sensors are available with either a stainless steel or polypropylene body, depending on your flow monitoring needs. Both units feature an accuracy of ±2% of full-scale and a repeatability of ±0.5% of full-scale. For additional compatibility, the AW-Lake FlowStat sensors offer 4-20 mA, 0-5 VDC, pulse or relay outputs.

Port Sizes for the AW-Lake FlowStat Sensors

  • The 1/2" port size features a 0.5-15 GPM (2-60 LPM) flow measuring range.
  • The 3/4" port size has a 1.5-50 GPM (60-200 LPM) range.
  • The 1" port size has a 1.5-50 GPM (60-200 LPM) range.

Regardless of port size, the AW-Lake FlowStat sensors with stainless steel bodies have a 10:1 turn down ratio and temperature range of 20-225°F (-7 to 107°C).

The ES version of the AW-Lake FlowStat sensors feature a durable polypropylene body for cost savings and compatibility with a variety of fluids. The ES sensor still offers a flow measuring accuracy of ±2% of full scale, and is capable of handing pressures up to 150 PSIG and temperatures up to 150°F.

Applications

This product can be used in the following applications:

Here's how some of our customers use this product...

Low-Cost, High Pressure Pulse Meter

The Background: Our customer manufactures a range of multi-stage pumps designed for dewatering mines. They require a simple pulse meter to be used in a pump prototype they are currently developing

The Problem: Striking a balance between cost and performance will be critical. Even though the pump is capable of producing pressures up to 450psi, since it is only a prototype, the customer wants to keep the cost as low as possible.

The Solution: We recommended a Lake Monitors FlowStat flow sensor. With an all stainless steel body and cover options selected, the FlowStat provides a pulse output for simple water flows up to 500 PSIG.

In Stock

Manufacturer Stock

Part Number Price Available
VCD-15-B
$820.00 39 in stock
VSD-25-B
$820.00 39 in stock
VSD-30-B
$820.00 39 in stock
PCD-15-B
$480.00 30 in stock
PCD-30-B
$480.00 30 in stock
PCD-50-B
$480.00 30 in stock
PSD-15-B
$480.00 30 in stock
PSD-20-B
$480.00 30 in stock
PSD-25-B
$480.00 30 in stock
PSD-50-B
$480.00 30 in stock
PCC-15-B
$480.00 29 in stock
PSC-15-B
$480.00 29 in stock
PSC-35-B
$480.00 29 in stock
VCC-15-B
$820.00 29 in stock
VCC-20-B
$820.00 29 in stock
VCC-30-B
$820.00 29 in stock
VSC-15-B
$820.00 29 in stock
TCC-15-B
$935.00 21 in stock
TSD-15-B
$935.00 21 in stock
PSD-50-E
$480.00 13 in stock
CCC-15-B
$895.00 12 in stock
CCC-15-BC
$925.00 12 in stock
CCC-20-B
$895.00 12 in stock
CCC-30-B
$895.00 12 in stock
CCC-50-B
$895.00 12 in stock
CCD-15-B
$895.00 12 in stock
CCD-15-BC
$925.00 12 in stock
CCD-30-B
$895.00 12 in stock
CCD-40-B
$895.00 12 in stock
CCD-50-B
$895.00 12 in stock
CSC-15-B
$895.00 12 in stock
CSC-20-B
$895.00 12 in stock
CSC-25-B
$895.00 12 in stock
CSC-50-B
$895.00 12 in stock
CSD-15-B
$895.00 12 in stock
CSD-20-B
$895.00 12 in stock
CSD-40-B
$895.00 12 in stock
CSD-50-B
$895.00 12 in stock
PCD-30-BD
$515.00 7 in stock
PSD-15-BD
$515.00 7 in stock
CCC-15-V
$907.00 6 in stock
PSC-15-V
$492.00 6 in stock
PSC-30-V
$492.00 6 in stock
RCC-15-B
$570.00 3 in stock
RCC-30-B
$570.00 3 in stock
RCD-15-BD
$605.00 3 in stock
RCD-30-B
$570.00 3 in stock
RCD-50-BD
$605.00 3 in stock
RSC-20-B
$570.00 3 in stock
RSC-30-BC
$600.00 3 in stock
CCC-15-BD
$930.00 1 in stock
CCD-50-BD
$930.00 1 in stock
CSC-30-BD
$930.00 1 in stock
CSC-30-VD
$942.00 1 in stock
CSD-50-BD
$930.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Ships in 4-6 business days. Call for 24hr expedited option". Click here to select options
