Time Electronics 1070 Decade Box

Name: Time Electronics 1070 Decade Box
Price: 990.0 USD
Availability: InStock

High accuracy capacitance decade boxes with five decades ranging from 100pF to 10μF.

$990.00

Effective May 2nd, 2025 Time Electronics has added a 10% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

1070

Manufactured

By Time Electronics

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

2 in stock

Product Manual Product Specs

Features

Ranges: 100pF to 10µF
Accuracy: 1%
Resolution: 100pF steps (9 steps per decade)
Residual capacitance: Approximately 40pF
In-line read-out
Color coded digits: µF = Red, ηF = White, ρF = Yellow
Bi-polar working

What's in the Box

Protective cover (fitted)
User manual

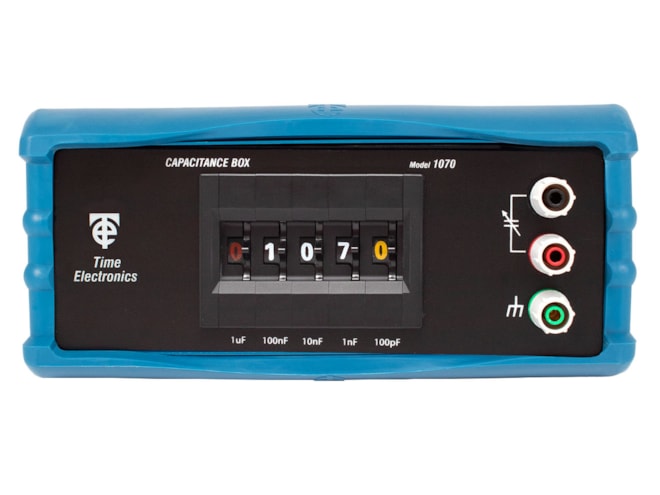

The Time Electronics 1070 capacitance decade box offers high accuracy across several different ranges: from 100pF to 10µF. Each of these ranges are measured within a 1% basic accuracy. The 5-digit thumbwheel switch enables simple and precise setting of the capacitance value. The 1070 is suitable for applications in industry and education.

Other features of the Time Electronics 1070 decade capacitance box include an in-line read-out and color coded digits. The Time Electronics 1070 decade capacitance box has three 4mm binding posts and a third terminal to enable the case to be connected to either output or earth. The case itself is constructed of metal to provide complete screening and has a residual capacitance is approximately 40ρF.

The 1070 is compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.
