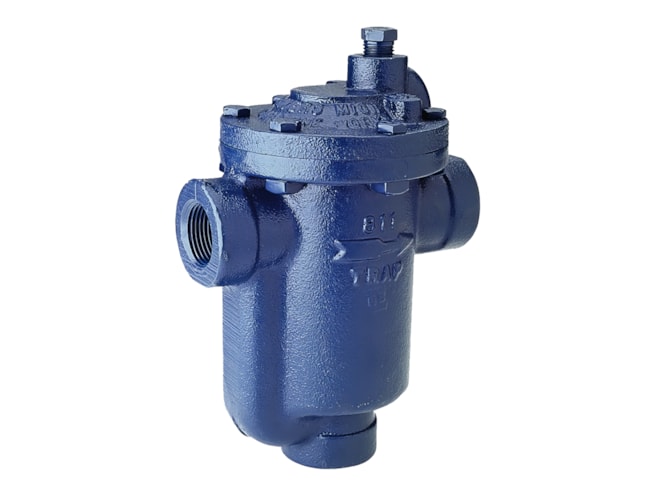

Armstrong International 800/811/812/813 Inverted Bucket Steam Trap

Cast iron body with stainless steel internals, 1/2 to 1in NPT connection sizes, with up to 250psi pressure rating. Continuous air venting, discharge orifice on top of trap.

Starting at $232.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Manual Product Specs

Features

  • Connection(s): 1/2in to 1in NPT
  • Pressure rating(s): 15 to 250psi
  • Max operating temperature: 450°F
  • Material(s):
    • Body: ASTM A48 Class 30
    • Internals: 304 stainless steel
    • Valve and seat: 17-4PH hardened chrome steel
    • Test plug: carbon steel
  • Certification(s): CE, CRN, EIL, NIBR, PED

The Armstrong International 800/811/812/813 Inverted Bucket Steam Trap ensures efficient, continuous condensate drainage. A cast iron casing, stainless steel internals and chrome steel valve increase durability and overall service life, reducing maintenance costs. This series is outfitted with various NPT connection sizes from 1/2 to 1 inches, with maximum pressure ratings up to 250psi, depending on configuration.

The inverted bucket design of the 800/811/812/813 includes a free-floating stainless steel mechanism, which allows the bucket to open the valve against system pressure. This mechanism is located at the top of the steam trap, inhibiting dirt accumulation on the discharge orifice. This orifice is secured with a water seal, preventing live steam loss. A small vent hole in the inverted bucket permits automatic air and CO2 venting at steam temperature.
