Druck PV620 Pressure Station

Advanced pressure measurement and generation system.

Druck PV620 Pressure Station — Druck PV621 Pressure Station

Druck PV621 Pressure Station

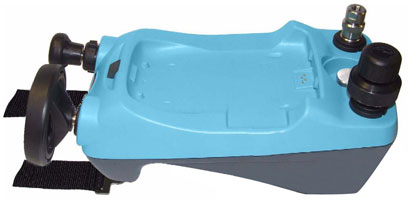

Druck PV622 Pressure Station
Druck MC620
Druck PV623 (shown with Advanced Modular Calibrator sold separately)

Retired products cannot be ordered

The GE Druck PV620G is the recommended replacement

View Company Reviews

Manufactured

By Druck

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

Pressure measurement and generation
Pneumatic or hydraulic
For pressures from vacuum up to 15,000psi
Compatible with PM620 pressure modules and DPI620 multifunction calibrator
Standalone replacement for hand pumps
Bench-top use as comparators
Dual channel measurement available (MC620)

The GE Druck pressure stations consist of either the PV620 pressure generator or the MC620 pressure module carrier. GE Druck pressure stations work in conjunction with DPI620 multifunction calibrator and PM620 pressure modules to form the GE Druck AMC Advanced Modular Calibration System.

The GE Druck PV620 pressure station is available in three models:

The PV621 is a pneumatic pressure generator for pressures vacuum to 300 psi.
The PV622 is a pneumatic pressure generator for pressures vacuum to 1500 psi.
The PV623 is a hydraulic pressure generator for pressures up to 15,000 psi.

Each GE Druck pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. GE Druck pressure stations can also be used on the workbench as a comparators. Combining any of the pressure stations with a PM620 pressure module and the DPI620 calibrator creates a uniquely capable, self-contained pressure calibrator.

The GE Druck MC620 pressure module carrier can be used in place of the GE Druck PV620 pressure station. The MXC620 can be combined with pressure modules and the DPI620 to add dual channel pressure measurement capability that can be re-ranged in seconds.

Documents

Probes

Druck AC Voltage Probe

Druck AC Voltage Probe

Druck AC Voltage Measurement Probe.

Cables

Druck IDOS to USB Module

Druck IDOS to USB Module

Connects an IDOS universal pressure module to the DPI 620 Calibrator.

Druck USB Cables

Druck USB Cables

Connect the IDOS USB module to either a PC or the DPI6xx, RS-232 interface version optional.

Some Models in Stock

Starting at $25.50

Batteries/Chargers

Druck IO620 Battery

Druck IO620 Battery

Spare or replacement battery for the DPI 620.

Druck Battery Charging Station

Druck Battery Charging Station

Cases

Druck System Carrying Case

Druck System Carrying Case

Druck System Carrying Case.

Druck Pressure Station Carrying Case

Druck Pressure Station Carrying Case

Protective fabric carrying case with shoulder strap and large pocket for accessories.

Druck Modular System Transit Case

Druck Modular System Transit Case

Druck Modular System Transit Case.

Accessories

Please consider these optional accessories.

Druck PM620 Pressure Module

Druck PM620 Pressure Module

Innovative and interchangeable pressure modules.

Some Models in Stock

Starting at $2,083.00

Druck Blanking Plug

Druck Blanking Plug

Allows the PV62X or DPI612 to be used as a pressure generator independently of the DPI620 and PM620.

Druck Pressure Adapter Set

Druck Pressure Adapter Set

Set of test point tool-less quick fit adapters to connect the pressure system to the extension hoses of device being tested.

Some Models in Stock

Starting at $198.00

Druck Fabric Carrying Case

Druck Fabric Carrying Case

Druck Fabric Carrying Case.

Druck Comparator Adaptor

Druck Comparator Adaptor

Allows the PV 62X pressure station to be used as a comparator.

Druck Hydraulic Hose Kit

Druck Hydraulic Hose Kit

High pressure hydraulic hose rated to 15,000 psi (1000 bar) terminated with a quick fit connector .

Some Models in Stock

Starting at $586.00

Druck Pneumatic Hose Kit

Druck Pneumatic Hose Kit

High pressure pneumatic hose rated to 5800 psi (400 bar) terminated with a quick fit connector .

Some Models in Stock

Select options for pricing

Druck Mains Adapter

Druck Mains Adapter

Druck IO620-PRV Pressure Relief Valve

Druck IO620-PRV Pressure Relief Valve

Protects the PM 620 pressure module and the device under test from overpressure.

Some Models in Stock

Select options for pricing

Druck IO620-IDT621 Dirt Moisture Trap

Druck IO620-IDT621 Dirt Moisture Trap

Remove solid and liquid contaminants from the pressure media, maximum pressure 300 psi (20 bar).

Druck IO620-IDT622 Dirt moisture trap

Druck IO620-IDT622 Dirt moisture trap

Remove solid and liquid contaminants from the pressure media, maximum pressure 1500 psi (100 bar).

Druck PM620 TERPS Pressure Modules

Druck PM620 TERPS Pressure Modules

0.0125% FS accuracy, Incorporate a range of TERPS resonant silicon pressure sensor technology.

Starting at $2,662.00
