GF Signet 2536 Rotor-X Paddle Wheel Flow Sensor

Integral, remote, or wet-tap paddle wheel flow sensor, operating range of 0.3 to 20ft/s (0.1 to 6m/s).

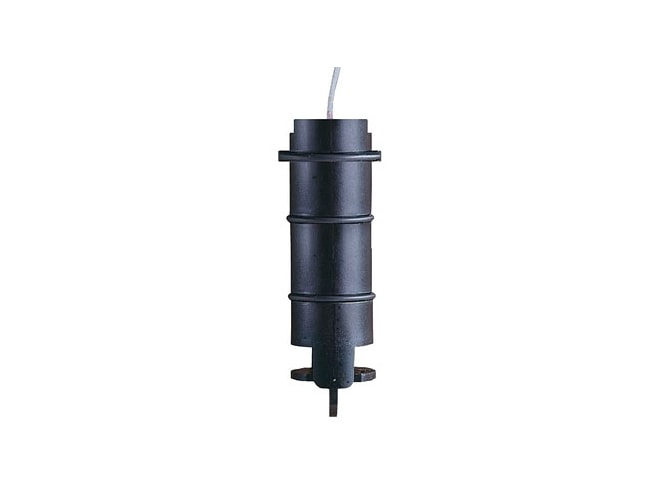

GF Signet 2536 Rotor-X Paddle Wheel Integral Flow Sensor
GF Signet 2536 Rotor-X Paddlewheel Remote Flow Sensor
GF Signet 2536 Rotor-X Paddle Wheel Remote Flow Sensor in PVC
GF Signet 2536 Rotor-X Paddle Wheel Wet-Tap Flow Sensor

Starting at $499.00 Starting at $449.10

View Company Reviews

Manufactured

By Georg Fischer / GF Signet

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

PVDF, PVC or Polypropylene molded sensor body
Simple insertion design
Separate versions for remote and integral installations
Wide turndown ratio of 66:1 for 2536, 20:1 for 515
Installs into pipe sizes from 1/2 to 36in (DN15 to DN900)
Process ready signal
Extended length for wet-tap installations available

Simple and reliable, the GF Signet 2536 Rotor-X paddle wheel flow sensor delivers time-honored performance. The highly repeatable and rugged GF Signet 2536 Rotor-X paddle wheel flow sensor offers exceptional value with little or no maintenance required. Installation of the GF Signet 2536 Rotor-X paddle wheel flow sensor is simple with GF Signet's comprehensive line of fittings for all pipe materials in sizes from DN15 to DN1000 (0.5 to 36in.). The 3-2536 has a process-ready open-collector signal and can operate to flows as low as 0.1 m/s (0.3 ft/s).

The GF Signet 2536 Rotor-X paddle wheel flow sensor has a unique "open-cell" rotor design, which eliminates cavitation at higher flow rates.

Applications for the GF Signet 2536 Rotor-X Paddle Wheel Flow Sensor

Pure water production
Filtration systems
Chemical production
Liquid delivery systems
Pump protection
Scrubber systems
Water monitoring
Not suitable for gases

Spec Sheets

GF Signet 2536 Paddle Wheel Flow Sensors Datasheet PDF (356 KB)

Manuals

GF Signet 2536 Paddle Wheel Flow Sensors Manual PDF (392 KB)

Other

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

GF Signet Installation Fittings

Fittings for securing insertion style flow sensors with different styles, models & materials to suit a variety of applications.

Some Models in Stock

Starting at $295.20

Power Supplies

GF Signet 7310 Switching Power Supplies

Regulated output voltage in compact and lightweight plastic housings for DIN Rail mounting.

Starting at $155.70

Accessories

Please consider these optional accessories.

GF Signet 9900 Transmitter

SmartPro single channel interface & multi-parameter input selection.

Some Models in Stock

Starting at $895.00 $805.50

GF Signet 3519

Wet-Tap Valve used with GF Signet 515 or 2536 Rotor-X flow sensor.

$986.00 $887.40

This product can be used in the following applications:

Part Number	Sensor Type	Body/Rotor/Pin Material	Pipe Size	Price	Available
3-2536-P0 Show Full Configuration	Remote mounting	Polypropylene / Black PVDF / Titanium	0.5 to 4 in	$601.20	17 in stock
3-2536-P1 Show Full Configuration	Remote mounting	Polypropylene / Black PVDF / Titanium	5 to 8 in	$635.40	3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
