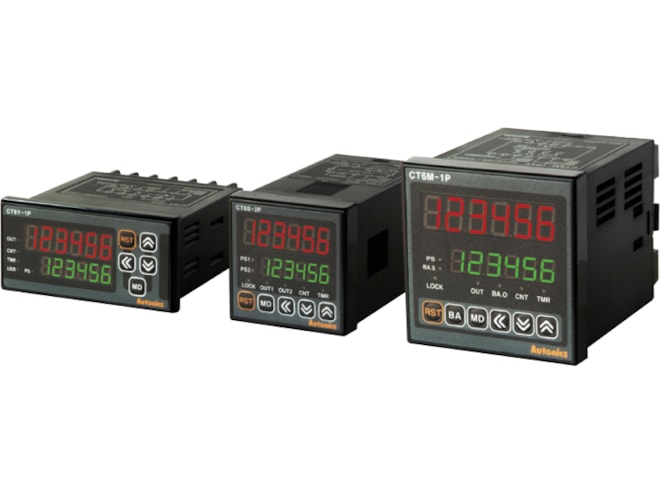

Autonics CT Series Counter/Timer
Programmable four or six digit counter/timer is available with RS 485 communication to facilitate set-up and monitoring via PC
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
Noah P.
Applications Engineer
5 years at Instrumart
Shawn D.
Senior Applications Engineer
15 years at Instrumart
Ron J.
Temperature Engineering Lead
23 years at Instrumart
Luke M.
Applications Engineer
Dwight M.
Senior Applications Engineer
23 years at Instrumart
Alex A.
Senior Applications Engineer
14 years at Instrumart
Features
- Available in 6 digit (range: 0.00001 to 999999) or 4 digit (range: 0.001 to 9999) models
- Optional built-in Modbus communication function
- Counting speed selectable for 1cps / 30cps / 1kcps / 5kcps / 10kcps
- 100-240 VAC or 24 VAC/24-48 VDC power supply
- Output: indicator, single preset, dual preset
- 10 year memory retention
- Selectable voltage input or no-voltage input
- 5A contact capacity
- BATCH counter function (CTM Series)
- TOTAL / HOLD functions
- IP65 rated front panel
- CE, UL approved
The Autonics CT series is a programmable counter/timer that is available with RS 485 communication function so that each parameter setting and monitoring can be done from a PC. The CT series includes both 4 digit (with a range of 0.001 to 9999) and 6 digit (with a range of 0.00001 to 999999) models. The CT series is also available with a range of options suited to customize the units to the exact specifications required by your application.
