Druck DPI 104 Pressure Gauge

Digital pressure gauge.

Features

  • 0.05% full scale (FS) accuracy
  • Pressure ranges to 20,000 psi (1400 bar)
  • Eleven selectable pressure units
  • Large, easy to read display with five digit resolution
  • Pressure indication and bar graph for quick visual reference
  • Temperature compensated accuracy from 14 to 122°F (-10 to 50°C)
  • 0 to 5V analog output
  • Pressure switch test
  • Minimum/Maximum, tare and alarm functions
  • IDOS compatible and RS232 serial interface
  • Networking capability (1 to 99 units)
  • Stainless steel or Inconel pressure cavity for aggressive media
  • Includes NIST traceable certificate of calibration
For complete pressure calibration solutions consider the Druck DPI 104 Calibration Kit.

Do you need to calibrate your Druck DPI 104 Pressure Gauge?
Our Calibration Lab can help. Fill out our Calibration Request Form today.


The Druck DPI 104 pressure gauge is a micro-processor controlled digital test gauge that combines precision and functionality in a compact, robust, and simple to use package. The Druck DPI 104 pressure gauge matches advanced silicon sensor technology with several convenient design features resulting in an accurate, versatile yet affordable digital test gauge. Supplied as a stand-alone process indicator or in a kit with the widely proven Druck hand pumps, the Druck DPI 104 pressure gauge provides a reliable and economic solution for a wide range of pressure sensing applications.

Applications of the Druck 104 Pressure Gauge

  • Process monitoring and control
  • Test and calibration

Universal Pressure Modules (UPM) can be connected to the Druck DPI 104 pressure gauge to enhance the accuracy and extend the pressure range of the unit.

Cases

Pelican Cases
Pelican Cases

Watertight, crushproof and dustproof cases for the ultimate in protection.

Some Models in Stock
Starting at $62.36

Accessories

Please consider these optional accessories.

Druck Power Lead
Druck Power Lead

Power lead for use with remote UPM IDOS sensor.

In Stock
$343.00
Druck External Power Supply
Druck External Power Supply

Universal 12v external power supply for use with the UPM IDOS remote sensor .

In Stock
$138.00

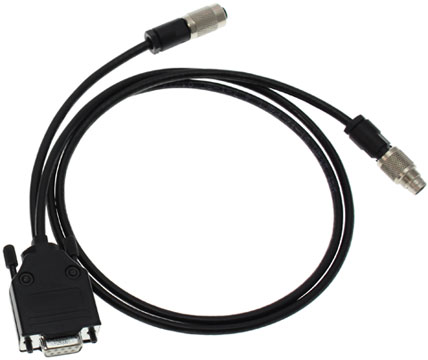

Druck Serial Lead
Druck Serial Lead

PC serial lead for connection to PC.

In Stock
$175.00
Druck Mating Plug
Druck Mating Plug

Mating plug for 8-pin socket .

$44.30
Druck 9/16 x 18 UNF to 3/8 BSP Adapter
Druck 9/16 x 18 UNF to 3/8 BSP Adapter

9/16 x 18 UNF to 3/8 BSP adapter for connection to PV 212 .

In Stock
$111.00
Druck 191-350 External Power Supply
Druck 191-350 External Power Supply

External power supply for the DPI 104 series.

In Stock
$343.00
Druck 853-134 Protective Overboot
Druck 853-134 Protective Overboot

Protective overboot for the DPI 104 series.

In Stock
$78.70

This product can be used in the following applications:

Here's how some of our customers use this product...

Accurate Pressure Measurement with Relay Contacts for High and Low Alarms

The Background: Our customer is a medical gas piping system manufacturer. They need a pressure gauge with relay contacts for high and low pressure alarms.

The Problem: The customer needs one alarm to energize at 277 psi falling pressure and another at 287 rising pressure. The alarms to be exact, with no hysteresis.

The Solution: The GE Druck DPI104 pressure gauge in conjunction with the 191-129 power supply and IA4101-1-VO power lead will give them both the accuracy and the alarm outputs they desire.

Part Number Process Connection Pressure Range Price Available
DPI104-2-1000PSIG
Show Full Configuration
1/4 NPT Male, calibrated in psi
0 to 1000 psi / 70 bar (0.05% FS accuracy)
 $966.00 4 in stock
DPI104-2-100PSIG
Show Full Configuration
1/4 NPT Male, calibrated in psi
0 to 100 psi / 7 bar (0.05% FS accuracy)
 $966.00 4 in stock
DPI104-2-300PSIG
Show Full Configuration
1/4 NPT Male, calibrated in psi
0 to 300 psi / 20 bar (0.05% FS accuracy)
 $966.00 4 in stock
DPI104-2-5000PSI-SG
Show Full Configuration
1/4 NPT Male, calibrated in psi
0 to 5000 psi / 350 bar (0.05% FS accuracy)
 $966.00 4 in stock
DPI104-2-3000PSI-SG
Show Full Configuration
1/4 NPT Male, calibrated in psi
0 to 3000 psi / 200 bar (0.05% FS accuracy)
 $966.00 3 in stock
DPI104-2-10PSIG
Show Full Configuration
1/4 NPT Male, calibrated in psi
0 to 10 psi / 1 bar (0.15% FS accuracy)
 $966.00 2 in stock
DPI104-2-30PSIG
Show Full Configuration
1/4 NPT Male, calibrated in psi
0 to 30 psi / 2 bar(0.05% FS accuracy)
 $966.00 2 in stock
DPI104-4-15,000PSI-SG
Show Full Configuration
9/16 x 18 UNF, calibrated in psi
0 to 15,000 psi / 1000 bar (0.05% FS accuracy)
 $1,298.00 2 in stock
DPI104-4-20,000PSI-SG
Show Full Configuration
9/16 x 18 UNF, calibrated in psi
0 to 20,000 psi / 1400 bar (0.05% FS accuracy)
 $1,298.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
