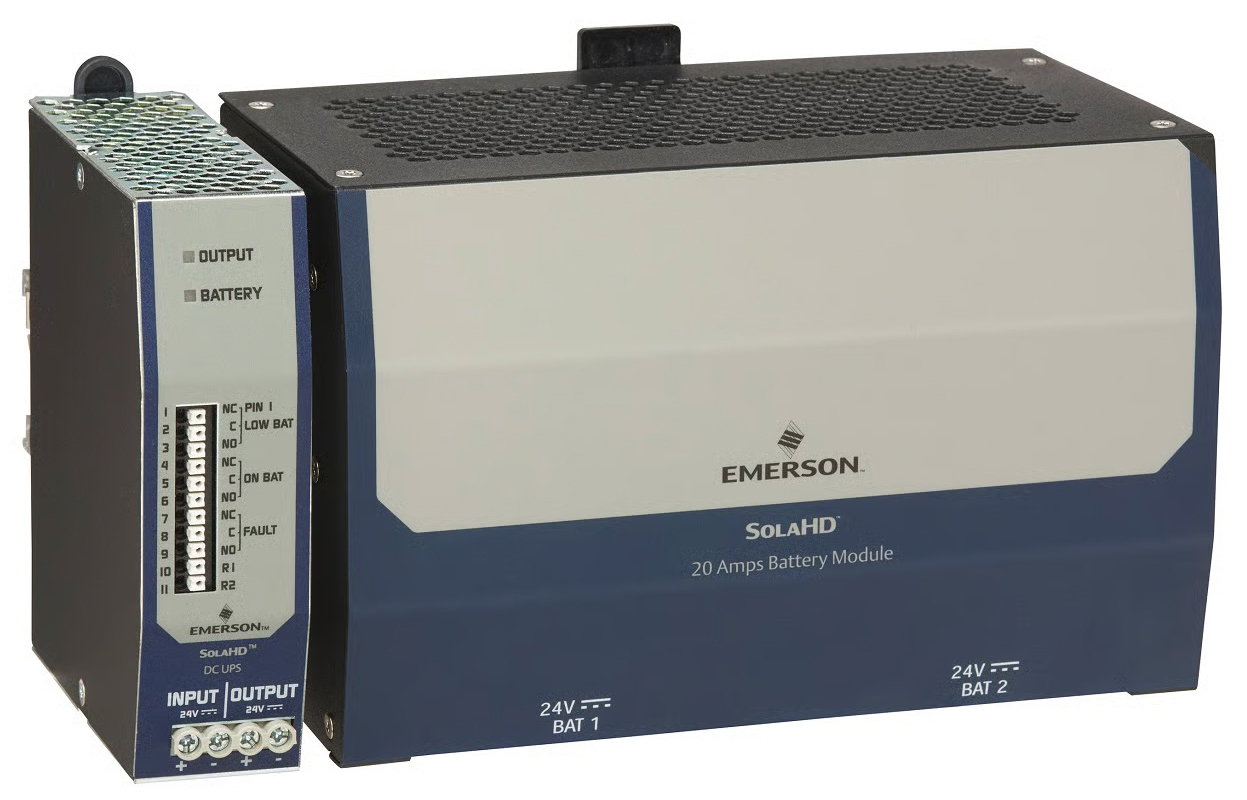

SolaHD SDU DC B Series DIN Rail UPS Power Supply
Modular, rugged industrial grade design.
Overview
Features
- 5 to 122°F temperature range
- Microprocessor based controls
- Automatic self-test feature for UPS function and battery management check
- Flexible batteries back-up expansion capabilities
- Overload protection in normal and battery modes
- User replaceable batteries
- IP20 rated input and output screw terminals
- No internal fan, no extra cooling required
- All metal DIN rail mounting connector
- LED status indicators
- Universal dry contact relay terminals provide remote signaling
- Monitoring, diagnostics, and remote turn-on and shut-off capabilities
Description
The SolaHD SDU DC B Series DIN Rail UPS Power Supply is an advanced 24VDC uninterruptible power unit that provides a wide operational temperature range. The UPS is a powerful, microprocessor controlled unit that provides protection from power interruptions. The 22.1 to 28.6VDC input voltage range provides an ideal power back-up solution for critical connected loads.
The SolaHD SDU DC B Series DIN Rail UPS Battery Module is a required accessory to this unit.
Applications
- Industrial/machine control
- Automation process control
- Computer-based control systems
- Conveying equipment
- Material handling
- Packaging machines
- Semiconductor fabrication equipment
- DeviceNet
- Amusement park equipment
- Pharmaceutical applications
- Control rooms
Documents
Accessories
Required Components
These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
