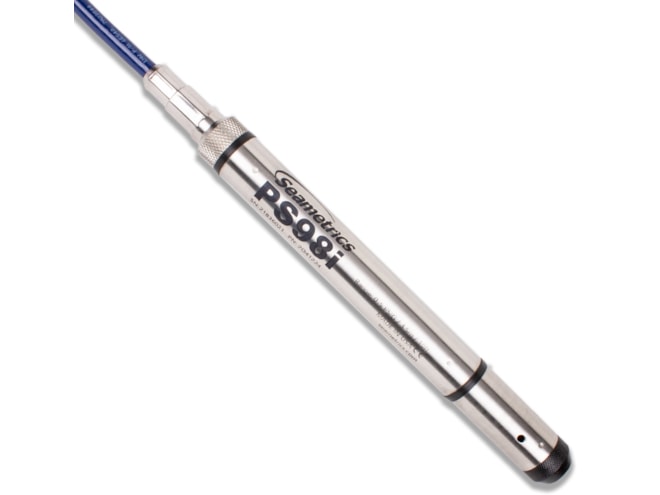

Seametrics PS98i Submersible Pressure Sensor

Measures pressure with 4-20mA interface.

Starting at $809.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Manual Product Specs

Features

  • ± 0.25% FSO typical accuracy
  • 1/4 NPT end cone adapter option
  • 4-20mA
  • -5 to 70˚C (23 to 158˚F) operating temperature
  • Requires freeze protection if using in water below freezing
  • Operates on low power
  • Calibrated with patented calibration procedures and NIST traceable equipment

The Seametrics PS98i Submersible Pressure Sensors are rugged and accurate with great noise immunity, transient protection, and thermal performance.

These pressure sensors have been designed to provide trouble-free submersible operation in liquid environments. Pressure is measured with an extremely rugged and stable piezo-electric, media isolated pressure element and calibrated with well established calibration procedures and NIST traceable equipment.

These sensors are thermally compensated, making them great where water temperatures vary, as they are thermally stable (2% over 50 degrees standard).

The PS98i  measures pressure, and can optionally be factory configured to measure temperature as well

This industry standard, 2-wire, 4-20mA device offer reverse polarity protection, under- and over-current limitation, and built-in transient protection.

Seametrics 7A23540 Polyurethane Standard Cable
Seametrics 7A23540 Polyurethane Standard Cable

Braided, vented, polyurethane coated cable (priced at $3.25 per foot).

$3.38
Seametrics 7A23542 High-Density Polyethylene Standard Cable
Seametrics 7A23542 High-Density Polyethylene Standard Cable

braided, vented, high-density polyethylene coated cable (priced at $3.25 per foot).

$3.38
Seametrics 7A23564 Ethylene Tetrafluoroethylene Standard Cable
Seametrics 7A23564 Ethylene Tetrafluoroethylene Standard Cable

Braided, vented, ethylene tetrafluoroethylene coated cable (priced at $6.00 per foot).

$6.24
Seametrics 7A23562 Polyurethane Standard Cable
Seametrics 7A23562 Polyurethane Standard Cable

Braided, non-vented, polyurethane coated cable (priced at $3.00 per foot).

$3.12
Seametrics 7A23554 Polyurethane Economy Cable
Seametrics 7A23554 Polyurethane Economy Cable

Mylar non-vented, polyurethane coated cable (priced at $2.00 per foot).

$2.08
Seametrics 8A6V121 Plastic Field Connector
Seametrics 8A6V121 Plastic Field Connector

Plastic Field Connector Option for PS9800, 98i, PT12.

$48.00
Seametrics 8A6V226 Plastic Field Connector
Seametrics 8A6V226 Plastic Field Connector

Plastic Field Connector Option for PS9800, 98i, PT12 (Non-Vented).

$48.00
Seametrics 8A6V122 Stainless Steel Field Connector
Seametrics 8A6V122 Stainless Steel Field Connector

Stainless Steel Field Connector for PS9800, 98i, PT12 .

$264.00
Seametrics 8A6V227 Stainless Steel Field Connector
Seametrics 8A6V227 Stainless Steel Field Connector

Stainless Steel Field Connector for PS9800, 98i, PT12 (non-vented).

$264.00
