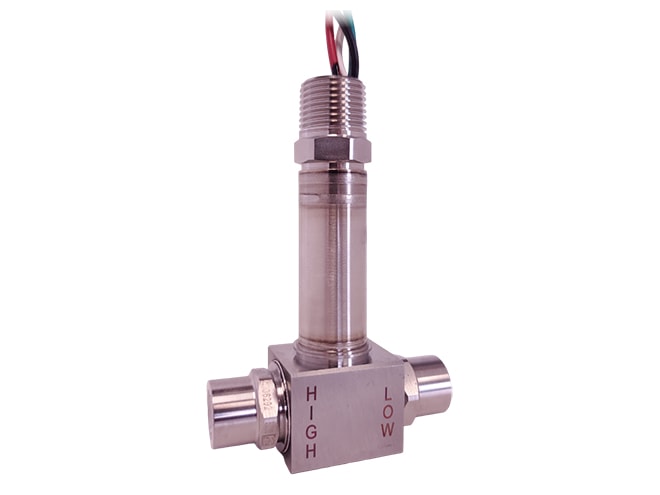

Core Sensors CS64 Explosion-Proof Differential Pressure Transducer
Configurable differential pressure ranges from 1 PSI up to 50 PSI.
Overview
Features
- ≤ ± 0.25% BFSL accuracy
- ≤ ±0.25% of FS stability
- 4 million pressure cycles
- 500 PSI max line pressure
- 50 PSI max differential pressure
- 4-20mA output
- -40 to 85°C operating temperature
- IP66
- CSA Class I, Division 1, Groups A, B, C, D, T4 Approved
Description
The Core Sensors CS64 Explosion-Proof Differential Pressure Transducer is a high strength sensor designed for differential pressure measurements of liquids and gases in Class I, Division 1 explosion-proof locations. The CS64 features an all welded, factory sealed stainless steel construction, offering a minimum IP66 rating. A 316L SS oil filled sensor element provides excellent stability over a wide operating temperature range while offering corrosion resistance against various liquids and gases. A 1/2” Male NPT conduit fitting with 2 meters of 20AWG flying leads is standard, allowing for easy installation of rigid metal conduit. Differential pressure ranges from 1 PSI up to 50 PSI are available with 1/4″ Female NPT process connections.
