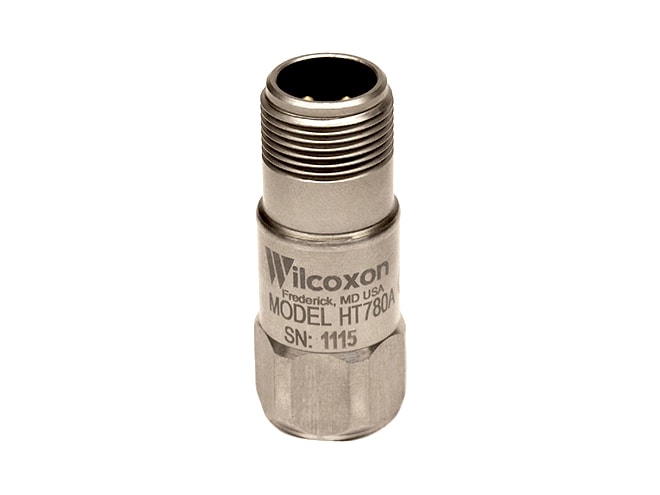

Wilcoxon Sensing Technologies HT780A Accelerometer

Compact high temperature accelerometer for high temperatures to 329°F (165°C), top exit, 100 mV/g sensitivity with ±5% sensitivity tolerance.

$406.15

View Company Reviews
Part Number
  • HT780A
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Specs

Features

  • 80g peak acceleration range
  • 500g peak vibration limit
  • 5,000g peak shock limit
  • Frequency response:
    • ±5%: 3 to 5,000Hz
    • ±10%: 1 to 9,000Hz
    • ±3 dB: 0.5 to 14,000Hz
  • 30kHz resonance frequency
  • Power requirements:
    • Voltage source: 18 - 30VDC
    • Current regulating diode: 2 - 10mA
  • 100Ω max output impedance
  • Hermetic sealing
  • 2-pin MIL-C-5015 connector
  • PZT ceramic / shear sensing element

The Wilcoxon Sensing Technologies HT780A accelerometer is compact, lightweight, and rated for high temperature applications. It is constructed with 316L stainless steel and is case isolated and internally shielded. The HT780A's rugged, hermetically sealed design has a 1/4-28 UNF tapped hole for mounting and a 2-pin MIL-C-2015 style connector. The HT780A features ESD and reverse wiring protection and is manufactured in an approved ISO 9001 facility.
