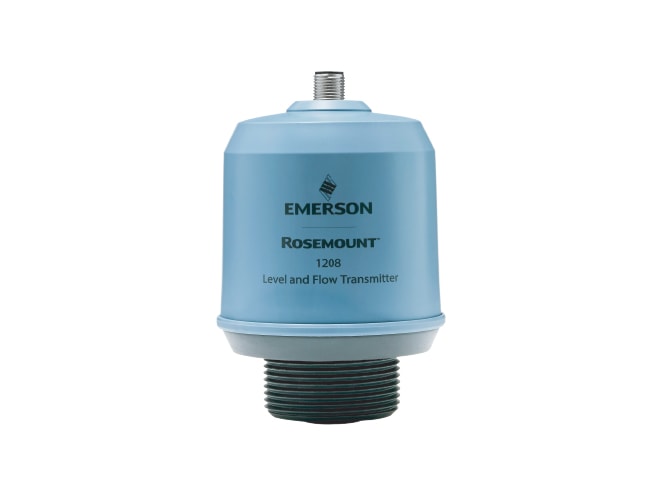

Rosemount 1208C Level and Flow Transmitter
Delivers reliable level measurements regardless of challenging weather conditions such as condensation, wind, sunlight, and changing temperature.
Overview
Features
- 4-20 mA output and HART
- -40 to 176 °F (-40 to 80 °C) process temperature range
- 15 to 43.5 psig (-1 to 3 bar) process pressure
- 49 ft. (15 m) maximum measuring range (dielectric constant dependent)
- 200 mm/s maximum level rate
Description
The Rosemount 1208C Level and Flow Transmitter has been specifically designed for applications in water and wastewater, utilities, and simple level applications. The radar uses continuous non-contacting technology and has a G 1.5” or NPT 1.5” threaded connection, 4-20 mA (3-wire), and switch communication protocols.
The Rosemount 1208C delivers accurate and reliable level measurement and open channel flow calculations in a compact and submersible PVDF housing with Drinking Water, FDA, EC 1935/2004 certifications. The Rosemount 1208C can also be connected to a controller, such as the Rosemount 3490 Series.
