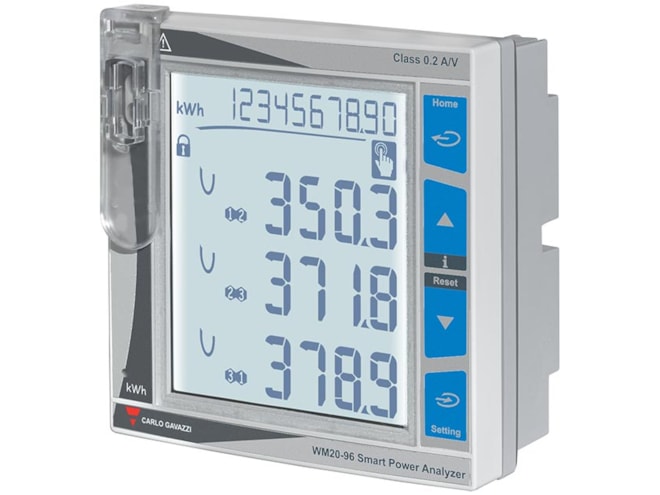

Carlo Gavazzi WM20 Power Analyzer

Name: Carlo Gavazzi WM20 Power Analyzer
Price: 550.0 USD
Availability: BackOrder

Modular analyzer for single-, two-, and three-phase systems.

$550.00

View Company Reviews

Part Number

WM20AV53H

Manufactured

By Carlo Gavazzi

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 10-12 weeks

Product Specs

Features

Measures:
- main electrical variables
- voltage
- current harmonic distortions
- active and reactive energy
Manages up to two alarms
380 to 690 V L-L ac, 5(6) A, connection via CT
Auxiliary power supply from 100VAC/VDC to 240VAC/VDC
Double electrical insulation on areas accessible to the user

The Carlo Gavazzi WM20 Power Analyzer calculates load operating hours, the average and maximum system and phase power vallues, and current and voltage THD (total harmonic distortions) up to the 32nd harmonic. The unit is equipped with detachable terminals and sealable terminal caps, and can be configured via keypad, UCS configuration software, and OptoProg via the optical port. The LCD display also allows for viewing measurements.
