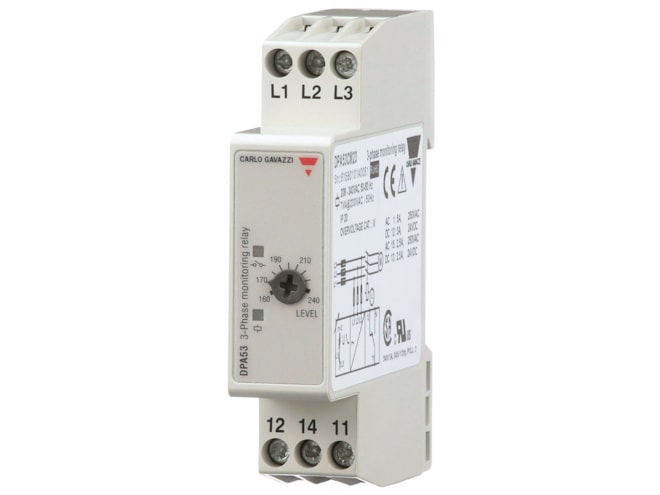

Carlo Gavazzi DPA53 Monitoring Relay

3-phase monitoring relays for phase sequence and phase loss with undervoltage detection.

Starting at $148.00

View Company Reviews
Manufactured
Includes
Availability
Product Specs

Features

  • Detects when all three phases are present and in proper sequence
  • Measures its own power supply
  • 380 to 480VAC or 208 to 240VAC power supply range
  • 5A SPDT relay output normally energized
  • 17.5mm DIN-rail housing (DIN 43880)
  • LED indication for power supply, output relay and ON

The Carlo Gavazzi DPA53 monitoring relay is a three-phase monitoring relay used for detection of incorrect phase sequence, and total or partial phase loss. The monitoring range of 380 to 480 VAC is covered by two multi-voltage relays. The proper undervoltage level can be set according to the phase-phase voltage and the desired sensitivity. The relay operates when all the phases are present, the phase sequence is correct and each phase-phase voltage is above the adjusted setpoint. The relay releases when one phase-phase voltage drops below the setpoint or when the phase sequence is incorrect. The DPA53 is DIN-rail mountable, and the 17.5mm housing is suitable for either back or front panel mounting.

Carlo Gavazzi DPA53 Monitoring Relay Applications

  • Elevators and escalators
  • HVAC and refrigeration
  • Water and wastewater
  • Plastics and rubber
  • Food and beverage
  • Packaging and wrapping
  • Material handling and conveyors
Part Number Price Available
DPA53CM48
Show Configuration
$154.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 14-16 weeks". Click here to select options
