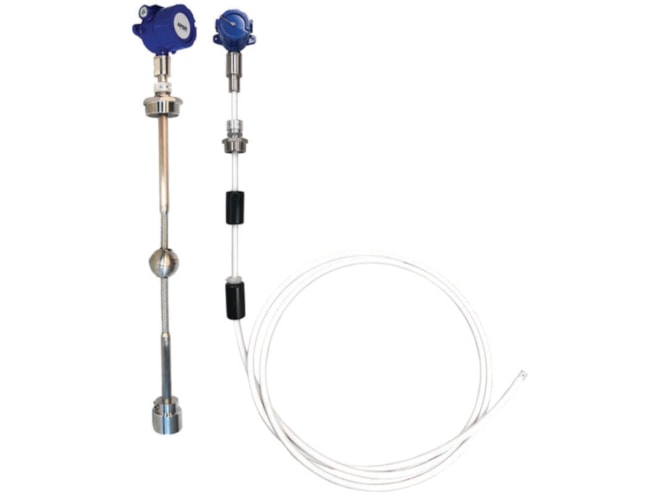

APG MPXI-F Series Level Sensors

Explosion proof flexible stainless steel and PVDF stem magnetostrictive probe level sensors.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Class I, division 1 and class I, zone 0/1 hazardous location ratings (cCSAus, ATEX, IECEx)
  • Explosion Proof housing for easy conduit connections
  • Zone 0-rated stem electronics
  • 4-20 mA (single or dual) or RS-485 (Modbus RTU) output
  • Stainless steel probe lengths up to 32 feet (9.75 m)
  • PVDF probe lengths up to 50 feet (15.2 m)
  • Up to seven temperature sensors
  • Low power; Start-up time under 5 seconds
  • Highly accurate and reliable readings
  • Dual level (interface) measurement
  • Tank volume or level output, strapping table

The APG MPXI-F Level Sensors provide highly accurate and repeatable level and temperature readings in a wide variety of liquid level measurement applications. The MPXI-F's flexible stem allows for installation in tanks up to 50 feet tall, without needing a crane or an extra-long truck and trailer for delivery. APG's proprietary-PVDF-formulation stem provides increased flexibility and impact resistance during cold-weather installation, along with compatibility in a wider range of corrosive media--including H2S--in larger tanks. And the unique Class I, Zone 0/1 rating allows for an Explosion Proof connection to a Zone 1-installed housing on top of a Zone 0-installed probe stem.
