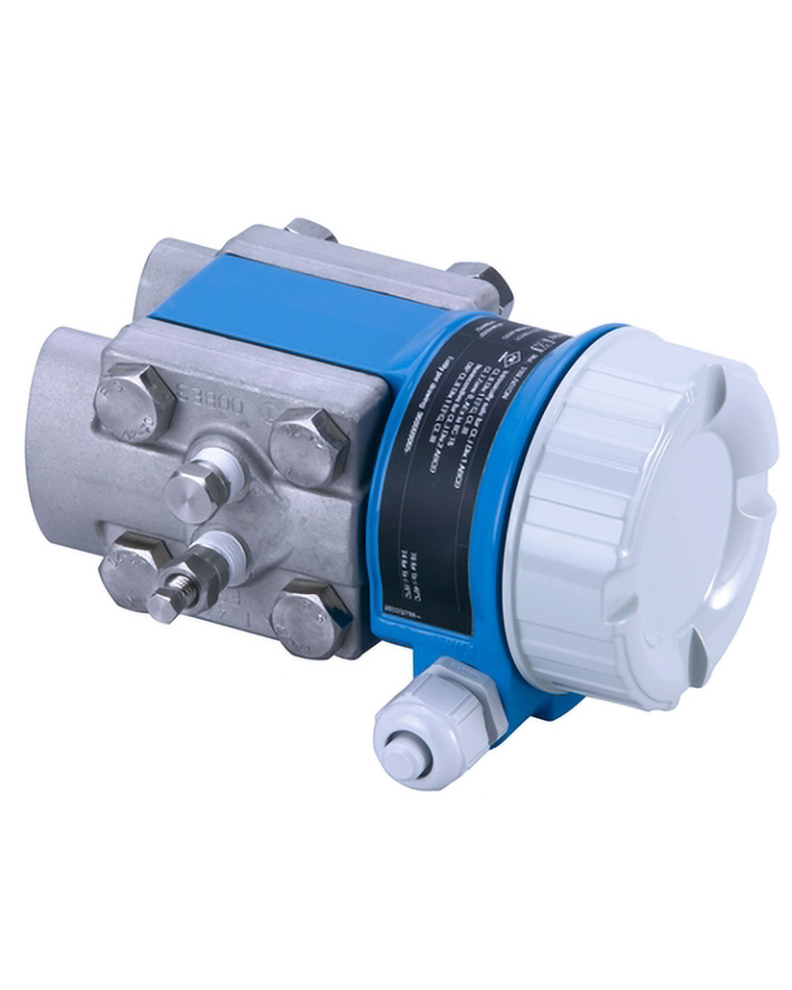

E+H Deltabar PMD55 Pressure Transmitter

Differential pressure transmitter with piezoresistive sensor and welded metallic membrane, typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases.

E+H Deltabar PMD55 Pressure Transmitter

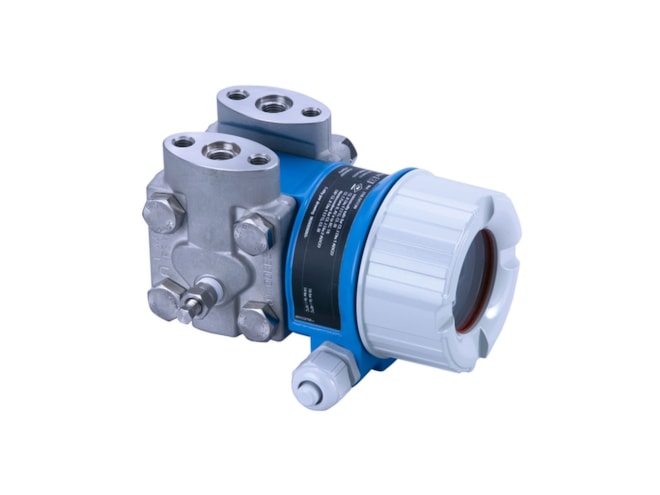

E+H Deltabar PMD55 Pressure Transmitter 2

Starting at $1,915.04

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Threaded process connections
-40 to 185°F (-40 to 85°C) process temperature
0.5mbar to 40bar (0.0072 to 600psi) measuring range
±0.1%, "Platinum" ±0.075% (optional) accuracy
4 to 20mA HART outputs
HART digital communication
ATEX, FM, CSA, IECEx, INMETRO, NEPSI, TIIS
SIL
NACE MR0103, NACE MR0175, EN10204-3.1

The E+H Deltabar PMD55 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

Spec Sheets

E+H Deltabar PMD55 Pressure Transmitter Data Sheet (2.4 MB)

Manuals

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
PMD55-AA21BD67LGFHAJA1J Show Configuration	$1,915.04	8 in stock
PMD55-AA21BD67LGEHAJA1APB Show Configuration	$2,054.70	1 in stock

Base Price:: $1,497.54
Approval: Non-hazardous area
Output: 4-20mA HART (+$129.05)
Display and Operation: LCD, push button on display/electronics (+$142.72)
Housing: F30 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/67 NEMA4X/6P
Nominal Pressure PN: 70bar/7MPa/1015psi
Sensor Nominal Value: 16bar/1.6MPa/240psi
Reference Accuracy: Standard
Calibration and Unit: Nominal value; psi
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90° (+$145.73)
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: EPDM
Additional Operation Language: Without
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Mounted Options: Without
Accessory Enclosed: Without
Accessory Enclosed Options: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Base Price:: $1,497.54
Approval: Non-hazardous area
Output: 4-20mA HART (+$129.05)
Display and Operation: LCD, push button on display/electronics (+$142.72)
Housing: F30 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/67 NEMA4X/6P
Nominal Pressure PN: 70bar/7MPa/1015psi
Sensor Nominal Value: 16bar/1.6MPa/240psi
Reference Accuracy: Standard
Calibration and Unit: Nominal value; inH2O/ftH2O
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Instal imp line vertical align 90° (+$145.73)
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM Viton
Additional Operation Language: Without
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Mounted Options: Without
Accessory Enclosed: Mounting bracket, wall/pipe, 316L, heavy duty design (+$139.66)
Accessory Enclosed Options: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without
Bus Address Options: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMD55-AA22AD67LGFHA4A1AAAN3PJ	Call for information	1	Call to order
PMD55-AA21BD67HDFHAJA1CN3PJ	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
