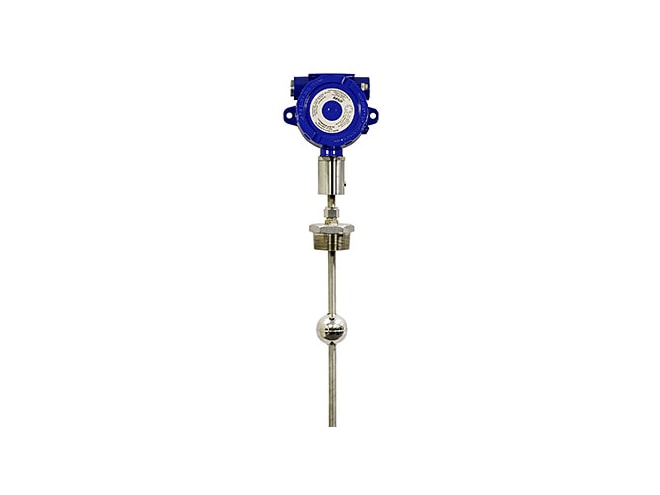

APG MPX-E Level Transmitter

Explosion-proof liquid level sensor with 0.5in diameter 316L stainless steel stem.

Features

  • Up to 12.75ft (3.9m) stem length
  • 0.05% FS accuracy
  • 4-20 mA and Modbus RTU output
  • NEMA 4X, IP65
  • Explosion Proof
    Class I, Divisions 1 and 2
    Class I, Zones 1 and 2

The APG MPX-E level transmitter is part of the MPX family of magnetostrictive liquid level probes that measure both the interface level and the total volume. The smaller, lighter-weight floats of the MPX-E model allow it to be used in applications where space is limited.

The MPX liquid level sensor is designed for high turbidity environments, and is certified for installation in hazardous areas in the US and Canada by CSA for Class I, Divisions 1 and 2 and Class I, Zones 1 and 2 environments. The RS-485 Modbus RTU output makes the MPX compatible with any Modbus controller or PLC, and it simplifies wiring dramatically.

MPX-E Level Transmitter Applications

  • Storage tanks of all sizes
  • Fuel tanks
  • Oil/water interface measurement
  • Thick, viscous, sludgy fluids
  • Industrial effluent
  • Power generation
  • Water and wastewater treatment
  • Pulp and paper
  • Biotech
  • Oil and gas
  • Chemical and petrochemical
APG RST-5003 Communication Module
APG RST-5003 Communication Module

Web-enabled device that offers affordable remote tank monitoring solutions by allowing up to ten sensors to be connected to an internet connection.

Starting at $361.00
Part Number Price Available
MPX-E2AFNNB12
Show Configuration
Call for pricing 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
