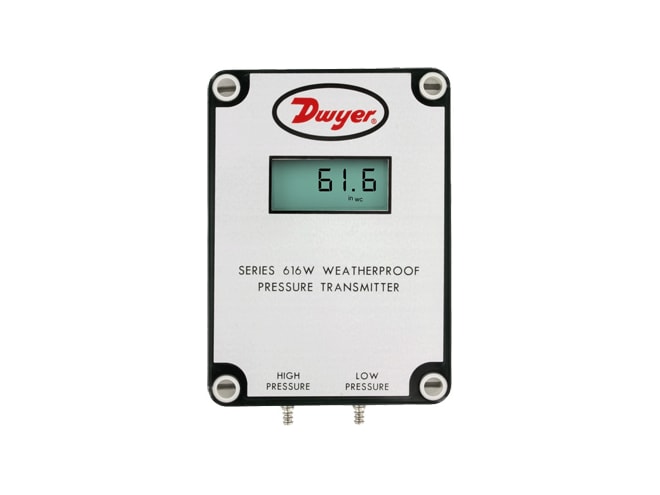

Dwyer 616W Differential Pressure Transmitter

NEMA 4X rated enclosure, polycarbonate case, ±0.25% FS accuracy, air and non-combustible, compatible gases.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • NEMA 4X rated enclosure
  • Air and non-combustible, compatible gases
  • ±0.25% FS accuracy
  • LCD display
  • Easy calibration
  • Polycarbonate case

The Dwyer 616W Differential Pressure Transmitter can be measured within a full span accuracy of ±0.25. Units are enclosed in a polycarbonate case, rated NEMA 4X (IP66) and operate by sensing the pressure of air and compatible gases then sending a standard 4-20 mA output signal. Design enables operation in 2-wire current loops. A wide range of models are available factory calibrated to specific ranges. The span and zero controls are for use when checking calibration. They are not intended for re-ranging to a significantly different span. The LCD display allows local indication of pressure.

Applications for the 616W include:

  • Dust collection
  • Outdoor HVAC
  • Roof-top equipment
