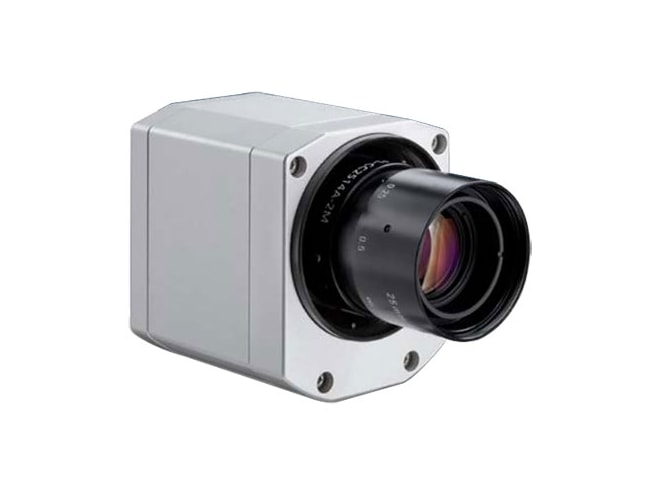

Optris PI 05M Infrared Camera

Up to 366,720 (764 x 480) pixel resolution, 1652 to 4442°F, sensitivity < 2.5K, for measuring molten metal .

$4,850.00

View Company Reviews
Part Number
  • OPTPI05MOF25T2450
Manufactured
Includes
Availability
  • Usually ships in 5 weeks
Product Family
Product Manual Product Specs

Features

  • 26° x 16° (764 x 480px), 13° x 10° (382 x 288px) lens
  • Temperature ranges
    • 1652 to 4442°F (900 to 2450°C) 27Hz
    • 1742 to 4442°F (950 to 2450°C) 32/80Hz
    • 2012 to 4442°F (1100 to 2450°C) 1kHz
  • 764 x 480px at 32Hz & 382 x 288px at 80Hz
    • Can switch to 27Hz
  • 0 to 10V 8 x 8px real-time analog output
  • ±1.5% of reading accuracy
  • 500 to 540nm spectral range
  • 1kHz frame rate
  • 1ms response time
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • 1 lens with protective window
  • lens protection tube
  • 3.3ft USB cable
  • 3.3ft PIF cable with terminal block
  • Table tripod
  • Optris PI Connect Software package
  • Aluminum case

The Optris PI 05M infrared camera has a 1kHz frame rate for fast processes and high optical resolution measuring the temperature of molten metals. Thr 500 to 540nm spectral range decreases measurement errors that can result from unknown or changing emissivities. The Pi 05M features a wide measurement range without subranges.

The complimentary Optris PI Connect Software offers extensive analysis of measurement data both on and off line. It can be customized to suit the demands of even the most unique applications. Features include automatic process and quality control, video recording, snap shot, and remote control of the camera. The PI connect software is necessary to interpret measurement results and is compatible with all netbooks, notebooks, and computer systems using Windows 7, 8, and 10.
