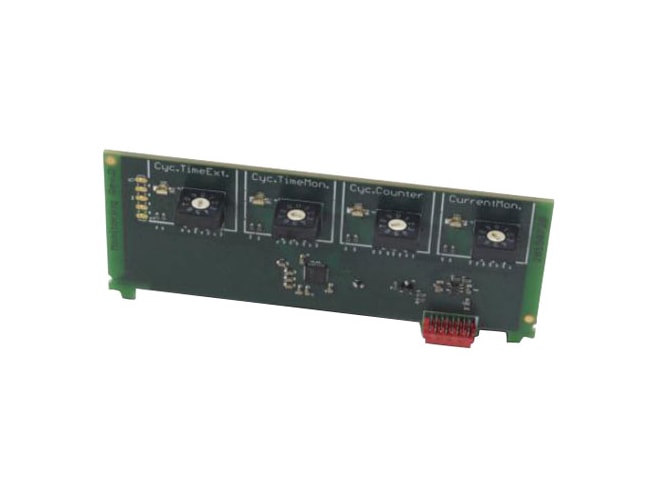

Georg Fischer EA25-250 Actuator Monitor Board

For monitoring control time and motor current, as well as for extending the control times and counting the control cycles.

$496.00 $446.40

View Company Reviews
Part Number
  • 199190602
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual

Features

  • For EA25, EA45, EA120 & EA250 electric actuators
    • Both 24V AC/DC & 100-230V AC versions
  • Plug into the housing of the actuator in the provided slots
  • Monitoring enables four functions:
    • Cycle time extension
    • Cycle time monitoring
    • Cycle counter
    • Motor current monitoring

The Georg Fischer EA25-250 actuator monitor board plugs into EA25, EA45, EA120 & EA250 electric actuators to provide four monitoring functions:

Cycle time extension

The cycle time extension extends the cycle time of the electric actuator. To do this, the actuator is moved continuously into the end positions (OPEN or CLOSE). For the corresponding value please refer to the table below. These values are valid for 90° actuation. The cycle time is given in seconds.

Cycle time monitoring

The cycle time monitoring monitors the duration of a preset cycle time of the electric actuator. As soon as the cycle exceeds the preset time, an error is reported. For the corresponding value please refer to the table below. These values are valid for 90° actuation. The cycle time is given in seconds.

Cycle counter

This function allows setting a desired number of cycles. As soon as the number of cycles exceeds the set value, an error is reported.

Motor current monitoring

The current monitoring function monitors the motor current. If the motor current is higher than the preset value, an error is reported and the actuator will remain in place.
