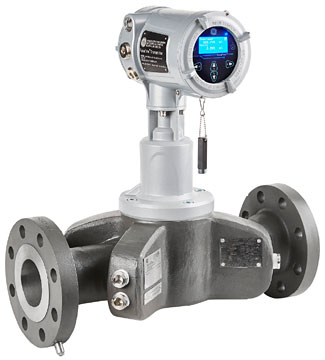

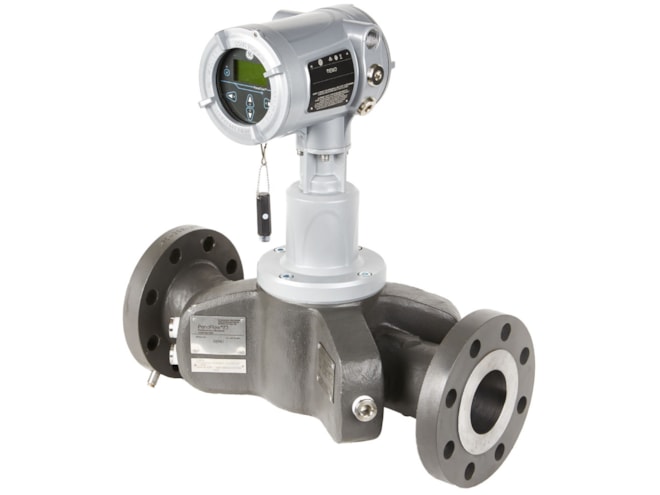

Panametrics PanaFlow Z3 Ultrasonic Flow Meter

Three-path, correlation transit time model with bidirectional measurement range from -82 to 82 ft/s and XMT1000 electronics.

Starting at $8,250.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • -82 to 82 ft/s (-25 to 25 m/s)
    • ±0.25% of reading above 1.6ft/s (0.5m/s)
    • ±1.25 mm/s of reading below 1.6ft/s (0.5m/s)
  • ±0.15% repeatability
  • -40 to 140°F (-40 to 60°C) operating temperature
  • Fluid temperature depends on electronics mounting
    • -40 to 185°F (-40 to 85°C) for local mount
    • -40 to 302°F (-40 to 150°C) for remote mount
  • Built-in magnetic, six-button, lockable keypad

The Panametrics PanaFlow Z3 ultrasonic flow meter does not require maintenance since it does not have any obstruction in the flow path that could clog the line, nor does it have any moving parts that could be damaged by the flowing fluid. The PanaFlow Z3's measurement is not affected by changing process conditions (temperature, pressure, and conductivity) and does not drift over time that would require periodic calibration.

Panametrics PanaFlow Z3 Ultrasonic Flow Meter Applications

  • Process control and monitoring
  • Allocation measurement
  • Batching blending files
  • Transfer lines
  • Cooling water lines
