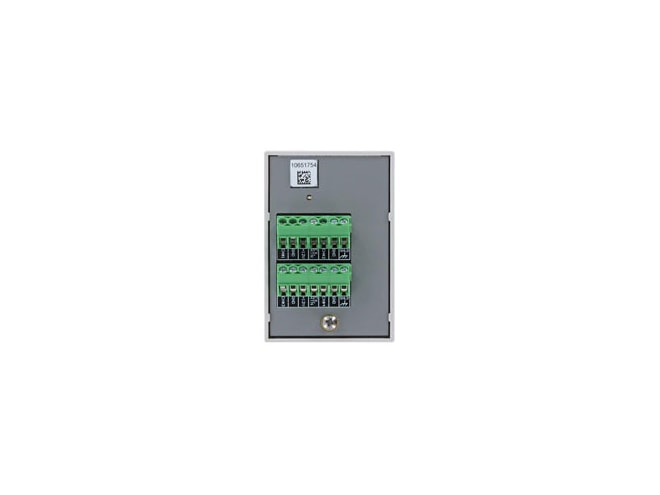

Hobo RXMOD-A1 Analog Module

Includes four analog inputs that support excitation power, scaling, and statistics measurements.

Features

  • Four, single-ended, in addition to smart sensor data channels
  • Measurement Range and Accuracy:
    • 0–25.6 mA DC, ±5 µA ± 0.15% of reading
    • 0–2.5 V DC, ±0.25 mV ±0.2% of reading
    • 0–5 V DC, ±0.25 mV ±0.2% of reading
    • 0–10 V DC, ±0.3 mV ±0.2% of reading
    • 0–20 V DC, ±0.6 mV ±0.2% of reading
    • 0–33 V DC, ±1.20 mV ±0.2% of reading
  • 15 bit resolution
  • Minimum/Maximum Input Voltage: 0/33 V DC
  • Minimum/Maximum Input Current: 0/25.6 mA
  • Minimum Source Impedance for Current Measurement: 20 KΩ
  • Excitation Voltage: 12 V DC ±5% at 200 mA maximum per module

The HOBO RXMOD-A1 analog module has four analog inputs that support excitation power, scaling, and statistics measurements. These four, single-ended sensor inputs are configured through HOBOlink. A HOBO RX3000 is required for this product.
