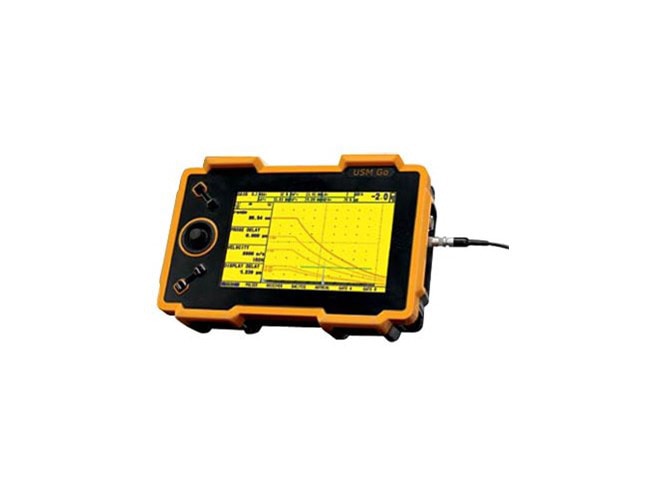

Waygate Technologies USM Go Flaw Detector

Light and portable ultrasonic flaw detector for prolonged operation in the oil and gas, aerospace, power generation and automotive industries.

Features

  • USM Go uses a joystick control
  • DMS Go thickness gauge upgrade available
  • LCD display, 800 x 480 pixels
  • Flip function allows instrument to be used by left or right hand
  • Pulser (EN12668 specifications)
    • Simulated spike pulser mode
      • 120 to 300V amplitude
    • Uni-polar square wave (optional)
      • 120 to 300V with 10V steps pulser voltage
      • 30 to 500ns with 20ns steps pulser width
    • 50 or 1000 Ohms damping
  • Vibration and shock tested
  • IP67 dustproof & waterproof

The Waygate Technologies USM Go Flaw Detector has been ergonomically designed to provide an instrument which is light, small and easy to use in the harshest inspection environments. Navigation is simplified using the proven graphical user interface (GUI) and joystick control, allowing one-handed operation and fast and accurate adjustment.

Waygate Technologies USM Go Flaw Detector Applications:

Weld Inspection

  • Trigonometric projections
  • AWS
  • DAC
  • DGS

Inspection of Forgings and Castings

  • Manual PRF adjustment
  • Phantom echo indicator
  • DGS

Inspection of Rails

  • High PRF (up to 2000 Hz)
  • Lightweight: 850 g (1.87 lb)
  • Small size and ergonomics

Inspection of Composites

  • RF Display
  • 2 gates with B-start triggered with echo in gate A
  • TCG correction with high slope 120 dB/μs
  • Reflector depth indicated in layer

Waygate Technologies is formerly know as GE Inspection Technologies (GEIT)

Probes

Waygate Technologies Angle Beam Transducers
Waygate Technologies Angle Beam Transducers

Single element, angle beam, contact transducers for use with the Waygate Technologies USM Go flaw detector.

Some Models in Stock
Starting at $475.00
Waygate Technologies Straight Beam Transducers
Waygate Technologies Straight Beam Transducers

Single element, straight beam, contact transducers for use with the Waygate Technologies USM Go flaw detector.

Starting at $424.00
Waygate Technologies Delay Line Transducers
Waygate Technologies Delay Line Transducers

Straight beam, delay line, contact transducers for use with the Waygate Technologies USM Go flaw detector.

Starting at $785.00
Waygate Technologies Wedges
Waygate Technologies Wedges

Precision carbon steel wedges for use with angle beam ultrasonic transducers.

Starting at $69.00
Waygate Technologies Delay Lines
Waygate Technologies Delay Lines

10-pack of delay lines for use with Waygate Technologies Delay Line Transducers.

Some Models in Stock
Starting at $87.00

Calibration

Waygate Technologies Calibration Blocks
Waygate Technologies Calibration Blocks

Known targets that produce echo indications that are used for instrument setup, transducer evaluation, and reference for evaluating flaw size.

Starting at $750.00

Cables

Waygate Technologies USM Cables
Waygate Technologies USM Cables

Cables to connect transducers to Waygate Technologies USM 100 and USM Go flaw detectors.

Some Models in Stock
Starting at $101.00
Waygate Technologies C-994 USB Cable
Waygate Technologies C-994 USB Cable

$98.00
Waygate Technologies KBA533 Probe Cable
Waygate Technologies KBA533 Probe Cable

4ft probe cable with dual lemo to dual lemo connections.

In Stock
$166.00
Waygate Technologies C-604 Probe Cable
Waygate Technologies C-604 Probe Cable

Probe cable with right angle Lemo connector.

$101.00

Holsters/Straps/Harnesses

Waygate Technologies EK-492 Ergonomic Kit
Waygate Technologies EK-492 Ergonomic Kit

Chest harness, wrist strap and belt holster.

In Stock
$590.00
Waygate Technologies CH-097 Chest Harness
Waygate Technologies CH-097 Chest Harness

In Stock
$186.00
Waygate Technologies BA-098 Belt Attachment
Waygate Technologies BA-098 Belt Attachment

$439.00
Waygate Technologies WS-342 Wrist Strap
Waygate Technologies WS-342 Wrist Strap

$186.00

Batteries/Chargers

Waygate Technologies LI-138 Battery
Waygate Technologies LI-138 Battery

Lithium ion battery.

In Stock
$296.00
Waygate Technologies LiBC-139 Battery Charger
Waygate Technologies LiBC-139 Battery Charger

Lithium ion battery charger / AC power supply.

$296.00
Waygate Technologies EBC-040 Charger Adapter
Waygate Technologies EBC-040 Charger Adapter

External battery charger adapter for lithium ion battery.

In Stock
$301.00

Accessories

Please consider these optional accessories.

Waygate Technologies SD-969 Memory Card
Waygate Technologies SD-969 Memory Card

2GB SD memory card.

$25.00
Waygate Technologies Transducers
Waygate Technologies Transducers

Transducers for use with Waygate Technologies ultrasonic thickness gauges and flaw detectors.

Some Models in Stock
Starting at $576.00
