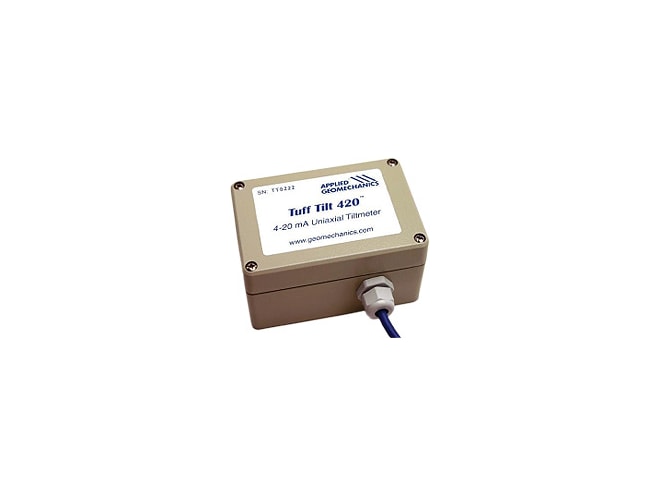

Jewell Instruments C801 Tuff Tilt 420 Tiltmeter

Current loop powered, gravity referenced ceramic tilt sensor, weatherproof enclosure, range: ±0.5°/±3°/±50°.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Range: ±0.5°/±3°/±50° uniaxial or biaxial
  • Resolution: 0.0001°/ 0.0006°/0.01°
  • 4-20 mA (2-wire current loop, per channel) output
  • Long term stability
  • Gravity referenced ceramic tilt sensor
  • Weatherproof enclosure
  • Measurements made over long cables using 2-wire pair
  • Built-in thermistor for temp measurements

The Jewell Instruments C801 Tuff Tilt 420 Tiltmeter combines precision, long-term stability and rugged durability in a compact and reliable instrument. The internal sensing element is a gravity referenced ceramic tilt sensor that delivers high dynamic range and the best resolution of any sensor in its class. Housed in a weatherproof enclosure, this tiltmeter may be used outdoors and in other wet environments.

Application for the C801 Tuff Tilt 420 Tiltmeter include:

  • Monitoring the performance of bridges, dams and other large structures; construction monitoring (standard version)
  • Antenna leveling and zenith finding (high- gain version)
  • Measuring the angular position of dam gates and other machinery (wide-angle version)

Here's how some of our customers use this product...

Monitoring Movement of a Bridge During Reconstruction

The Background: A construction company is rebuilding a bridge and they need to monitor any movement of the bridge while work is in progress.

The Problem: Due to safety concerns with the location of the bridge, the company needs to monitor for any movement greater than 0.4˚ in any direction. If such movement occurs audible and visual alarms need to be activated to let people know to evacuate certain areas.

The Solution: The Jewell Instruments Tuff Tilt 420 with a biaxial configuration captures movement both up and down and side to side and provides the accuracy needed by the customer. The unit contains outputs for alarms.

Monitoring Stress on a Concrete Containment Wall

The Background: Our customer is a mining company that routinely dumps material into a holding area surrounded by a concrete containment wall. They seek a way to ensure that the mass of the material does not cause unsafe stress on the containment wall which could cause it to collapse.

The Problem: The customer deposits a large amount of material in these containment areas which are in close proximity to access roads and work areas. The customer is concerned that it might be difficult to tell if the concrete walls become overstressed.

The Solution: We suggested the Jewell Instruments C801 Tuff Tilt 420 Tiltmeter which offers a gravity referenced sensor that delivers high dynamic range and the best resolution of any sensor in its class. The Tuff Tilt will provide constant monitoring to see if the containment walls begin to bulge, at which point steps can be taken to mitigate the danger.
