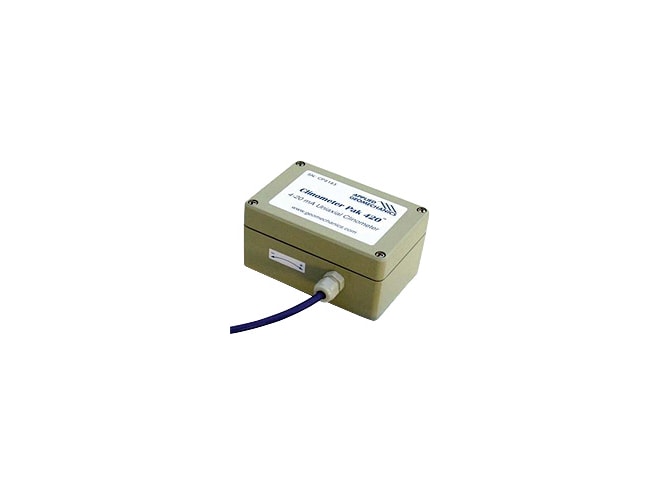

Jewell Instruments C904 Clinometer Pak 420 Inclinometer

Economical uniaxial inclinometer with 4-20 mA output, weatherproof enclosure, no mechanical moving parts.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Range: ±10°/±25°/±50°
  • resolution: 0.005°/0.01°/0.02°
  • Repeatability: 0.01°/0.02°/less than 0.04°
  • 4-20 mA (2-wire current loop) output
  • Painted, die cast aluminum, NEMA 4X (IP65)
  • Operating temp: -40 to 185°F (-40 to 85°C)

The Jewell Instruments C904 Clinometer Pak 420 Inclinometer is the packaged version of our Tulip 4-20 mA clinometer. Its rugged aluminum enclosure provides mechanical and environmental protection for indoor or outdoor use. This uniaxial instrument is current loop powered, so measurements can be made over long cables using an economical 2-wire pair. It also measures temperature using a built-in thermistor. Use it to monitor the angular position of conveyers, booms, ramps and machinery; perform antenna tilt error corrections; and track the pitch and roll of ships, buoys, ROV's and towfish.
