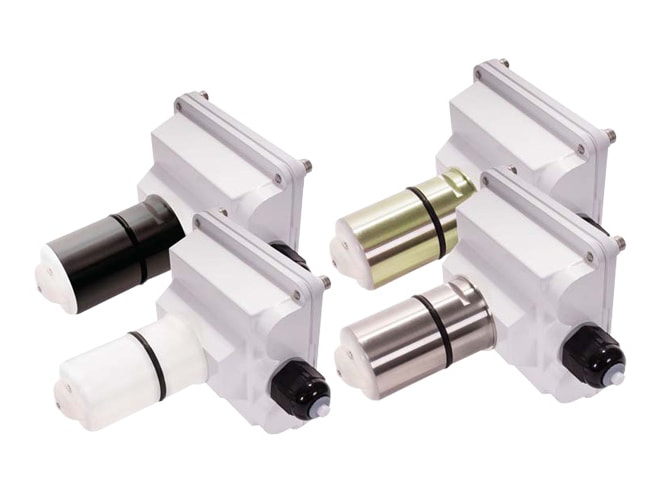

Seametrics EX800 Series Magmeter
Electromagnetic flow sensor, fixed depth insertion for 1 to 12 inch pipes
- Manufactured by Seametrics
- +/- 1% of full scale accuracy
- No moving parts
- Reverse flow output optional
Seametrics EX800 Series Magmeters are insertion electromagnetic flowmeters that are designed for use with conductive liquids in 1 to 12 inch pipe. A choice of materials (stainless steel, brass, and PVC) allows the meter to adapt to a range of temperature, pressure, and corrosive environments.
The EX800 is highly suitable for difficult applications with changing viscosities and pulsating flows, such as air-driven diaphragm pumps. With no moving parts, these meters can be used in "dirty" applications where debris would foul a mechanical meter. Like all magmeters, when used in chemical injection applications, these meters should be installed upstream of the chemical line (or far enough downstream to allow complete mixing of fluids before the meter).
Designed for modularity and versatility, the EX800-Series has a current-sinking pulse output that can be combined with the appropriate transmitter or indicator for the application. For analog output and display of rate and total, an FT420 can be used. Blind analog output is provided by the AO55. The PD10 can be used to divide the pulse for pacing chemical metering pumps and the DL76 (data logger) is also compatible. Modules can be wall- or meter- mounted. If the EX800 meter is used with a programmable controller, the output signal can be fed direct, with no other conditioning required.
EX800-Series fixed depth insertion meters require special fittings. Factory installation in the fitting ensures correct depth placement in the pipe. The EX800-Series meter can be ordered in a full power model when a source of electricity is available, or in a low power model that can run on an external battery with solar panel.
Reverse flow output and immersibility are optional.
Applications for Seametrics EX800 Series Magmeters
- Conductive fluids
- Industrial processes
- Chemical metering pumps
