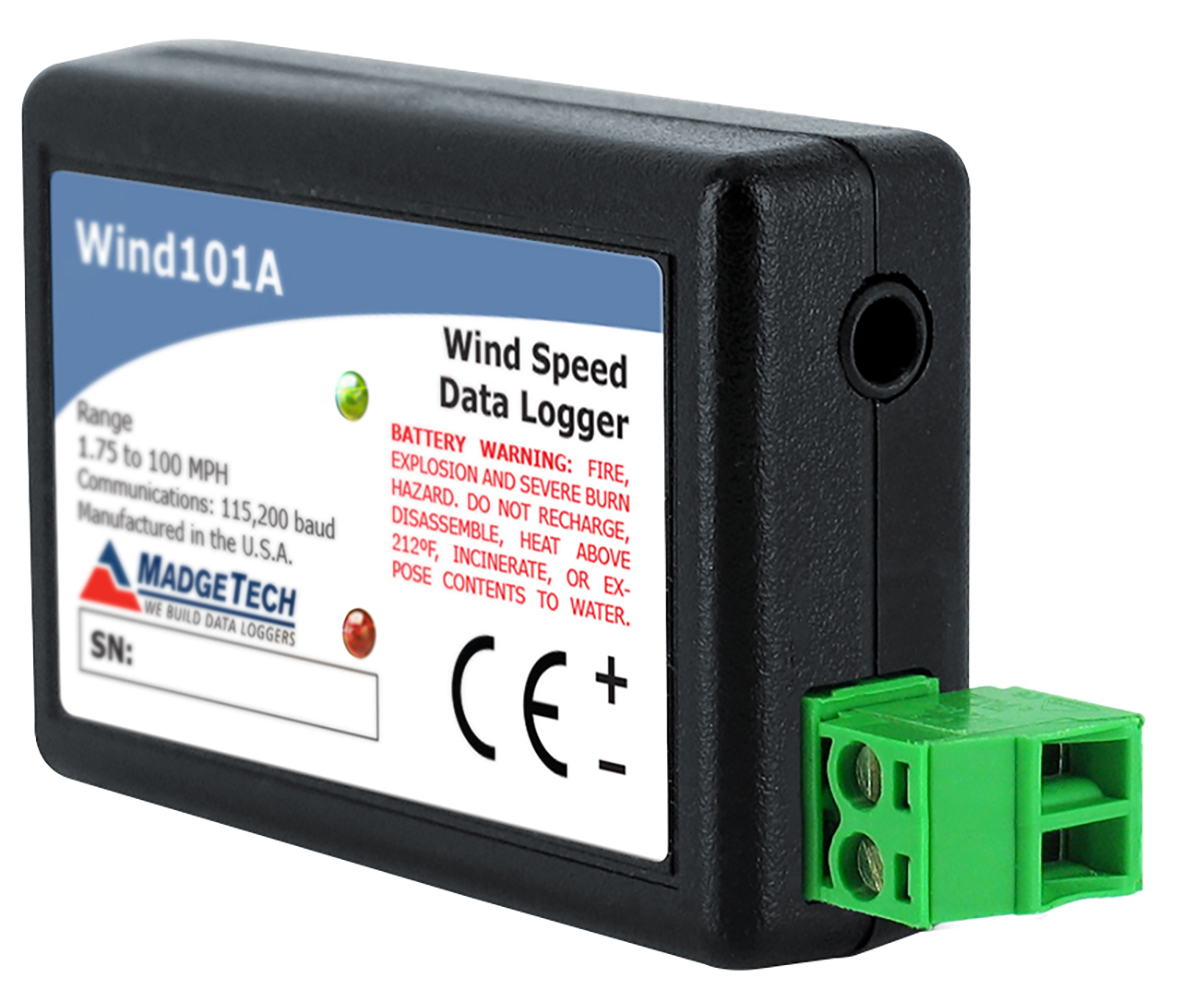

MadgeTech Wind101A Wind Speed Data Logger System
Complete wind speed data logging system for up to 100mph winds with 500,000 reading storage capacity.
Overview
Features
- 0 to 100 MPH (0 to 160 KPH) range
- 0.085 MPH resolution at a 10 second sampling rate
- ±2.5% calibrated accuracy over 10 to 100 MPH (16 to 160 KPH)
- 10 year battery life
- 1 second reading rate
- Push button start/stop function
- Ultra high speed download
- 500,000 reading storage capacity
- Field upgradeable
What's in the Box
- Pulse101A data logger
- Weatherproof enclosure
- Three-cup anemometer
- IFC200 USB Serial Cable
- Certificate of Conformance
- Quick Set-Up Guide
Description
The MadgeTech Wind101A wind speed data logger system is a complete system to accurately measure and record wind speed. This low cost wind speed recording system comes complete with a data logger, weatherproof enclosure, a three-cup anemometer and all the necessary cabling to quickly get up-and-running. The logger can record up to 500,000 readings and the storage medium is non-volatile, solid state memory, providing maximum data security even if the battery becomes discharged.
The device can be started and stopped directly from a computer using our user-friendly software.
Applications for the MadgeTech Wind101A:
- Alternative Energy Studies
- Meteorology/Climatology
- Wind Turbine Location Assessments
Documents
Accessories
Required Components
These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
Air Purge
Applications
This product can be used in the following applications:
