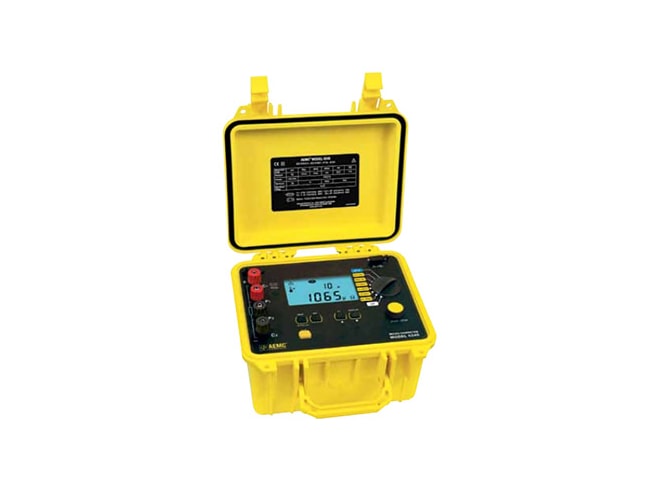

AEMC 6240 Micro-Ohmmeter
Digital 10A micro-ohmmeter for measuring low resistance with high accuracy
Availability
Usually ships in 1-2 weeks
Features
- Part number 2129.80
- Manufactured by AEMC
- Reliable low resistance measurements
- Four-terminal Kelvin resistance measurement eliminates test lead resistance
- 10 A test current at up to 4000 µΩ
- 0.25% basic accuracy
- 1 µΩ resolution
- Direct reading, easy to operate
- Six selectable resistance ranges
- Polarity reversal button
- Overload and input fuse protection
- Manufactured to international safety and environmental standards
- Automatic scaling and zeroing
- Large terminals accept banana plugs and spade lugs
- Rechargeable NiMH battery with internal charger (110/230V)
- Rugged, double insulated waterproof case
- Includes DataView software for instrument configuration, data storage, analysis and report generation
Includes FREE
The AEMC 6240 10 A micro-ohmmeter is a rugged, low resistance tester designed for both plant and field use. It is a cost effective, feature rich instrument designed for measuring contact resistance, bond resistance and other low resistance connections. The 6240 accurately measures very low resistance with 0.25% accuracy utilizing a four-lead Kelvin method of testing.
An internal NiMH battery pack is rechargeable from 110/230 V, 50/60 Hz. A fully charged battery can perform up to 850, 10 A tests. Resistance measurements are automatically calculated from 1 µΩ to 400 Ω with resolutions down to 1 µΩ.
The AEMC 6240 Micro-Ohmmeter has selectable test currents of 10 A, 1 A, 100 mA and 10 mA and includes a polarity reversal function. The 6240 is designed to conduct tests on both resistive and inductive material. Polarity reversal is easily accomplished with a push of a button. The resistance measurements of both positive and negative test results, as well as the average, are displayed.
The included DataView software allows you to: download data, temperature compensate the test results, store data and print reports using predefined templates or custom templates you create.
Applications for the AEMC 6240 Micro-Ohmmeter:
- Aerospace metallic coating resistance measurement
- Bonding verification on earth/ground systems
- Weld joint integrity verification
- Contact resistance measurement of breakers and switchgear
- Aircraft and rail bonding checks
- Wire to terminal connections and resistance checks
- Battery strap resistance checks
- Cable joint and bus bar connection checks
- Mechanical bond tests
The AEMC 6240 Micro-Ohmmeter ships complete with:
- (2) 10 ft. Kelvin clips (10 A - Hippo)
- NiMH rechargeable battery pack
- Optical USB cable
- US 115 V power cord
- Pad of measurement results forms
- DataView software
- Extra large tool bag
- Two spare fuses (12.5 A)
- Product warranty and registration card
- User manual
| AEMC 6240 Micro-Ohmmeter Specifications: | ||||||
|---|---|---|---|---|---|---|
| Electrical | ||||||
| Range | 4000 µΩ | 40 mΩ | 400 mΩ | 4000 mΩ | 40 Ω | 400 Ω |
| Accuracy | 0.25% of reading ±2 cts | 0.25% of reading ±2 cts | 0.25% of reading ±2 cts | 0.25% of reading ±2 cts | 0.25% of reading ±2 cts | 0.25% of reading ±2 cts |
| Resolution | 1 µΩ | 10 µΩ | 0.1 mΩ | 1 mΩ | 10 mΩ | 100 mΩ |
| Test Current | 10 A | 1 A | 1 A | 100 mA | 10 mA | 10 mA |
| Measurement Mode | Single test start/stop or auto test and store of multiple measurements | |||||
| Power Source | Rechargeable 6 V, 8,5 Ah NiMH batteries | |||||
| Battery Life | Up to 850, 10 A tests | |||||
| Battery Charging | Internal 110/230 V AC, 50/60 Hz charger | |||||
| Power Management | User selectable power save mode | |||||
| Low Battery Indication | Icon blinks when battery needs changing | |||||
| Memory | Stores up to 99 test results. Data in memory can be reviewed on the instrument display, on a PC or via direct printout | |||||
| Mechanical | ||||||
| Dimensions | 10.70 x 9.76 x 7.17" (270 x 250 x 180 mm) | |||||
| Weight | 10 lbs (4.5 kg) | |||||
| Index of Protection | IP53 (case open); IP54 (case closed) | |||||
| Display | ||||||
| Display Type | 4000-count LCD | |||||
| Size | 4 x 2.25 (102 x 57 mm) | |||||
| Backlight | Blue electroluminiscent | |||||
| Color | Safety yellow case; gray faceplate UL94 V-0 | |||||
| Communication | ||||||
| Interface Port | Optically isolated USB | |||||
| Environmental | ||||||
| Operating Temperature | 14° to 132°F (-10° to 55°C); 10 to 85% RH | |||||
| Storage Temperature | -40° to 158°F (-40° to 70°C); 10 to 90% RH | |||||
|
