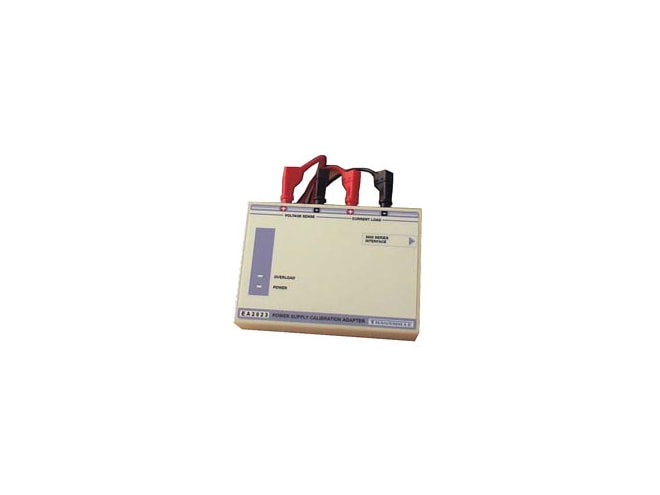

Transmille EA3023 3A Power Supply Calibration Adapter
An essential option for simplifying the calibration of power supplies
Usually ships in 2-3 weeks
- Part number EA3023
- Manufactured by Transmille
- Measure output voltage to 63 V
- Active current load to 3 amps
- Measures output resistance
- Connects to adapter interface on calibrator
- Used with Virtual Front Panel or ProCal Software
The Transmille EA3023 power supply adapter can measure output voltage and also provides a precision electronic current load allowing volts, current and output resistance to be calibrated by one compact unit. The 4-wire connection ensures accuracy and repeatability.
The Transmille EA3023 power supply adapter measures the power supply's output voltage using the internal high accuracy A/C converter built into the 3000 series. The adapter provides a precision electronic load controlled by the calibrator. To calibrate the power supply output current meter, simply set the required load current and record the meter reading.
By measuring a power supply's on-load/off-load voltages, the output resistance of the power supply can easily be measured. The operation is controlled using a PC running either the Virtual Front Panel program (included) or ProCal software. The ProCal procedure wizard is available for automatic procedure generation.
