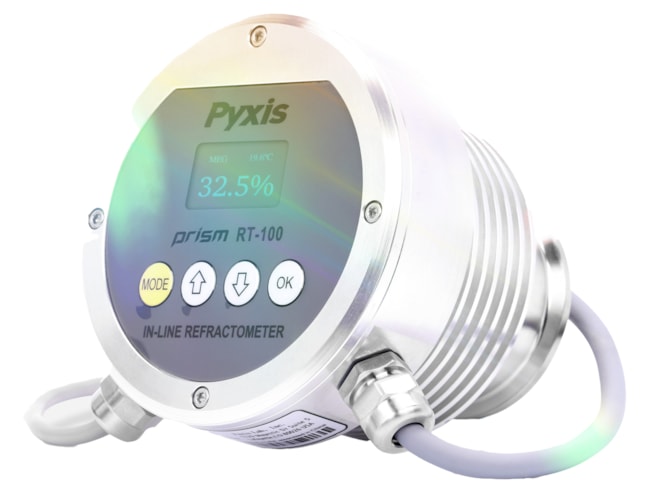

Pyxis RT-100 PRISM Inline Refractometer

4-20 mA output of sample temperature and the unit of display selected via the screen interface .

$3,888.00

View Company Reviews
Part Number
  • 55105
Manufactured
Includes
Availability
  • Usually ships in 3-4 weeks
Product Manual Product Specs

Features

  • <142 psi (0.98 MPa) / <13.5 GPM (9.8 ft/s) max sample/pressure flow
  • RS-485 Modbus RTU output of temperature, refractive index and other diagnosis parameters
  • Built-in temperature dependent equations % BRIX, %MPG, %MEG and % ALV
  • Range of measurement:
    • Refractive Index: 1.31700 – 1.5100
    • Brix: 0.00 – 85.00%
    • Mono Ethylene Glycol: 0.00 – 100.00%
    • Mono Propylene Glycol: 0.00 – 100.00%
    • Advanced Low Viscosity Fluid: 0.00 – 100.00%
  • Sturdy 316L stainless-steel construction suitable for harsh application environments
  • Local display and push-button interface

What's in the Box

  • 316L stainless steel tri-clamp flow cell assembly (P/N 56206)
  • MA-1.5CR cable (1.5 meter/ 4.9 ft 8pin male adapter/flying lead) (P/N 50746)
  • Prism RT-100 wall outlet power adapter (110VAC-24VDC-2Pin) (P/N 56207)

The Pyxis RT-100 PRISM Inline Refractometer is an inline digital refractometer that measures the refractive index of a liquid sample and provides a direct reading of highly accurate concentration values for a wide variety of water and process related applications. It is a stand-alone device capable of self-sustained operation, live data display and data logging.

The RT-100 Prism also offers fully integrated 4-20mA and RS-485 Modbus output signals for connectivity to any microprocessor-based controller, display, PLC or DCS network. The RT-100 Prism has built-in temperature dependent equations to convert the measured sample temperature and refractive index to the percentage concentration of Mono-Ethylene Glycol (MEG), Mono-Propylene Glycol (MPG), Sugar Content (Brix) and Advanced Low Viscosity Fluid (ALV). Additional concentration curves may be added in the future by Pyxis Lab as the market demands.
