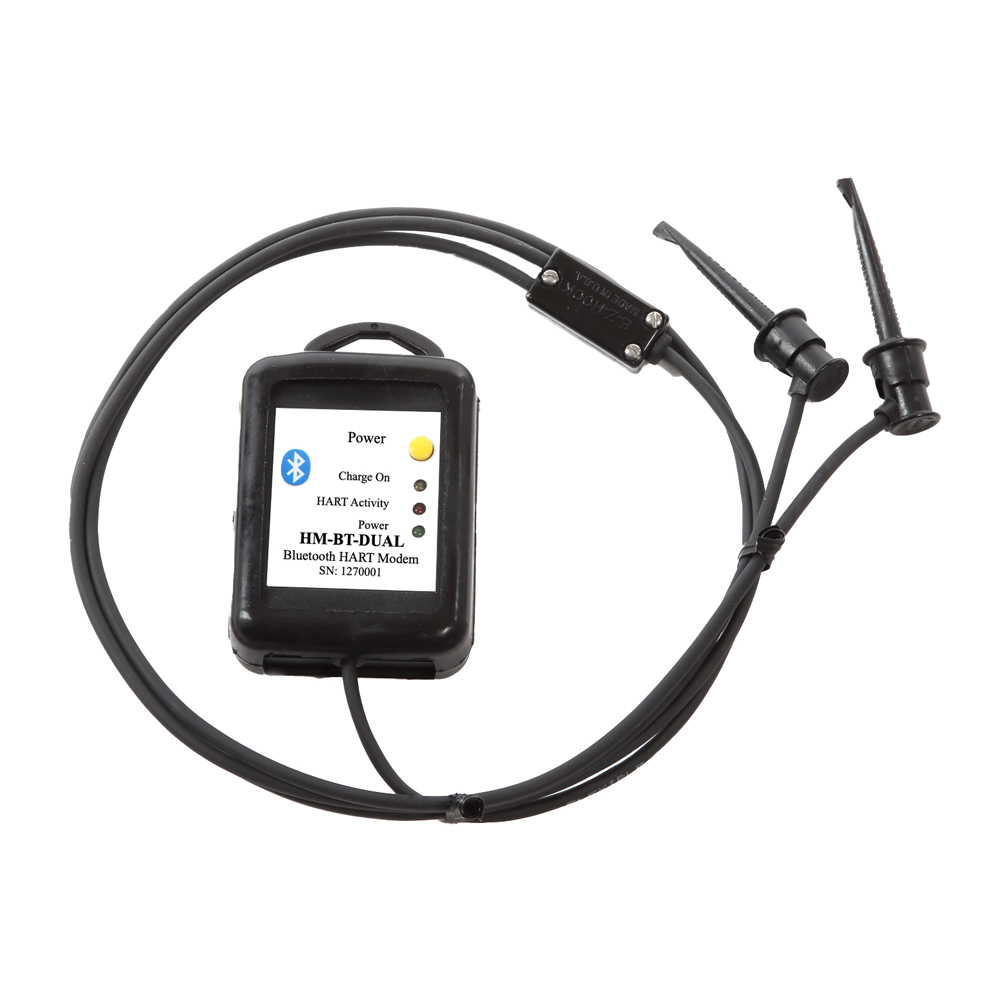

ProComSol Dual Bluetooth Battery-Powered HART Modem
Wirelessly connects an Android, Windows, or iOS device to HART field devices for configuration and monitoring.
Overview
Features
- Uses Bluetooth Classic or Bluetooth Low Energy
- Reliable wireless connection up to 328ft (100m)
- Capacitive coupling HART interface
- 600 mVpp output
- <10uA leakage
- Connections across loop resistor or HART field device
- Meets HART Physical Layer Spec HCF_SPEC-54
- 2.4GHz frequency
- 4ft (1.2m) HART cable length
- Rechargeable Li-Ion battery via micro-USB connector
- 20hrs continuous use battery life
- Banana plug option available
- 1-year warranty
Description
The ProComSol Dual Bluetooth Battery-Powered HART Modem allows the user to access hard-to-reach instrumentation from the ground or a truck. Instrument configuration can be achieved using wireless mobile devices, and the reduced clutter on desk or workbench contributes to improved plant personnel safety and productivity.
The modem includes an internal antenna, and a Li-Ion battery rechargeable via a USB-C connector. Integral heavy duty HART mini-grabber connectors are also included. The modem is protected by a high security 128-bit encryption, and a rugged ABS plastic enclosure with a rubber boot. It is designed to work with DevCom2000, DevComDroid, and DevCom.iOS and other HART software.
