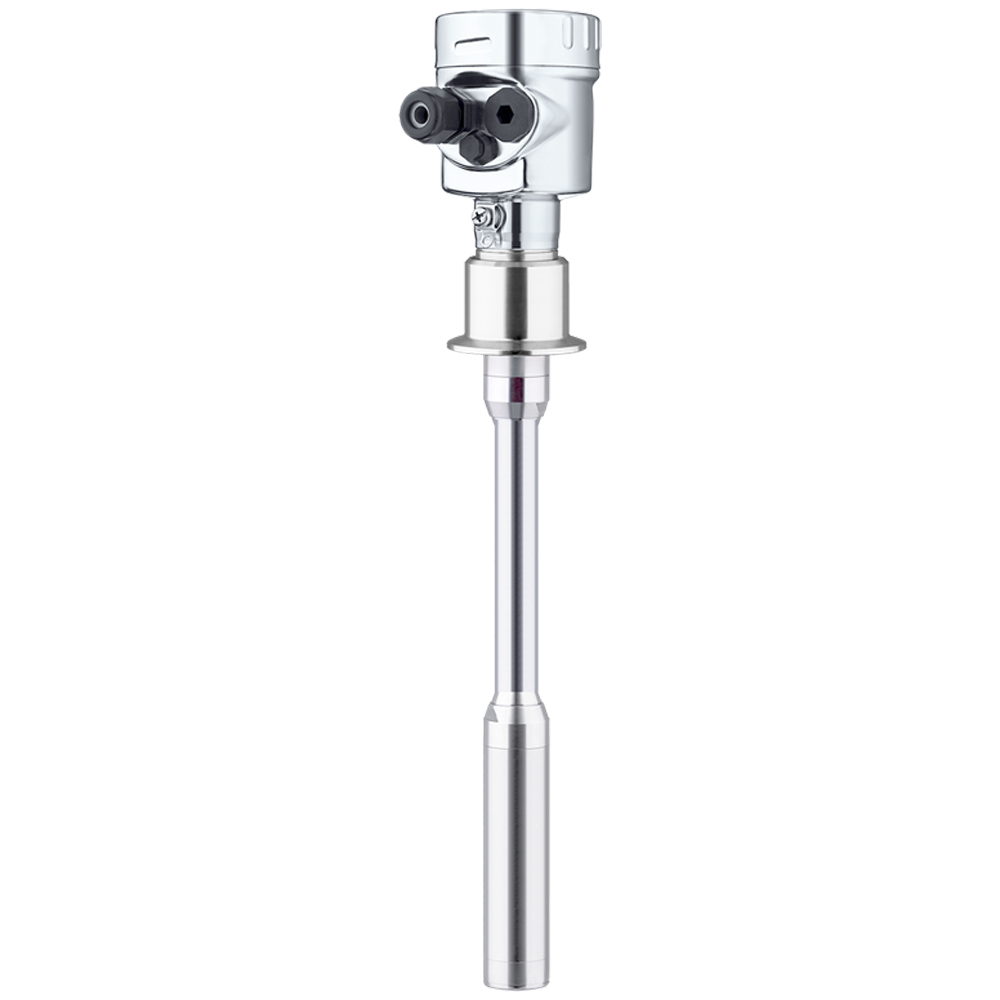

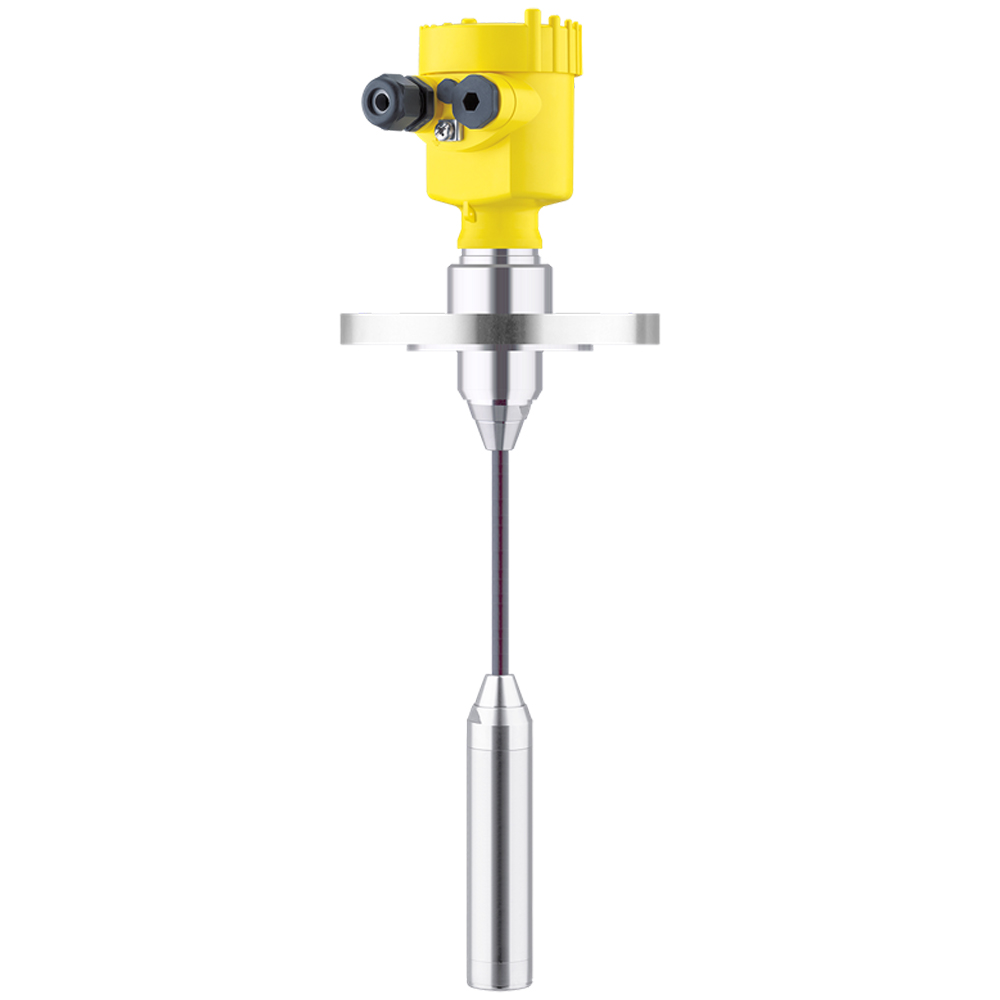

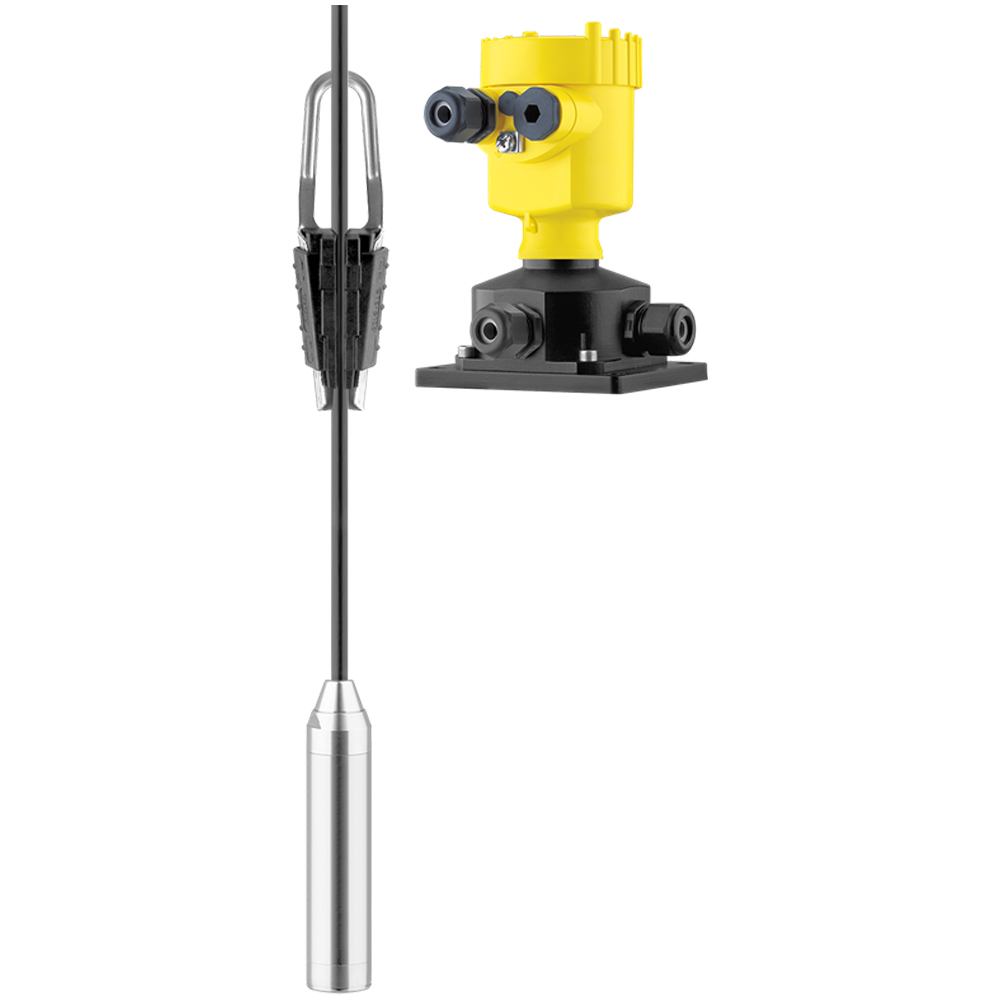

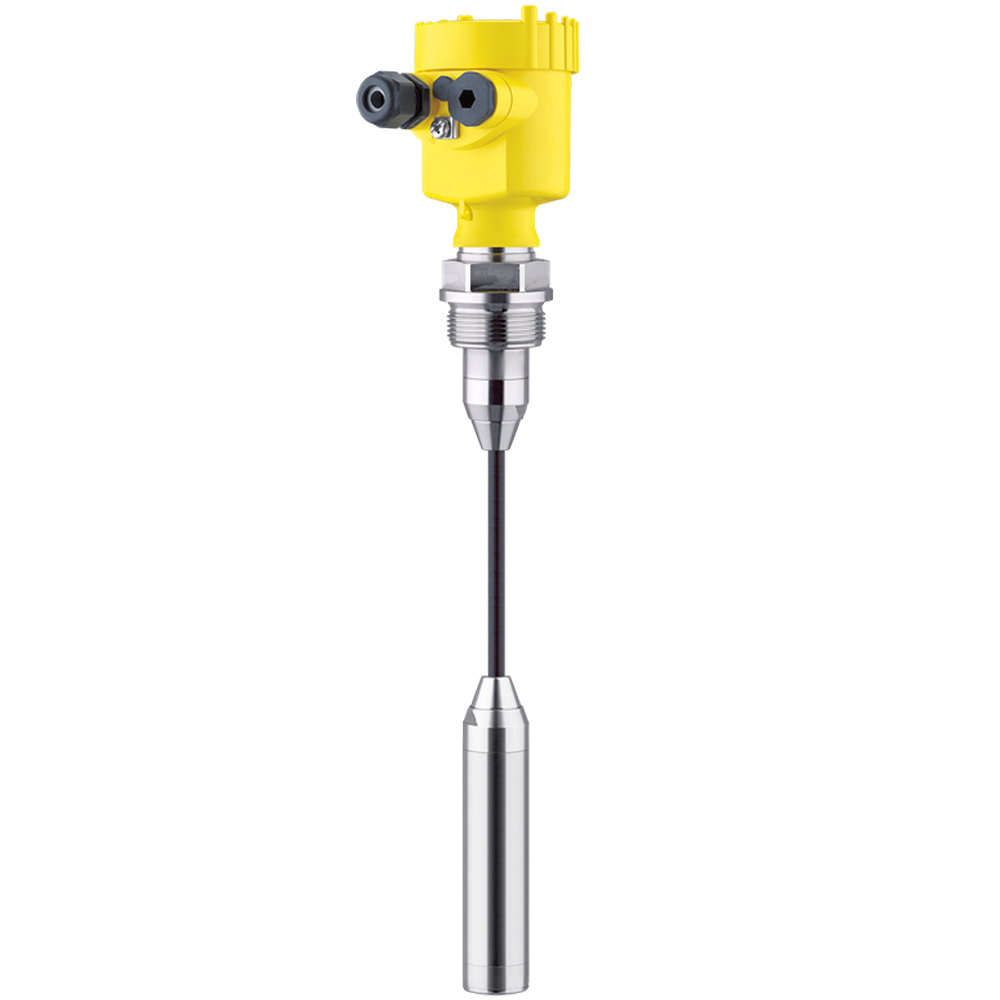

VEGA VEGABAR 86 Submersible Pressure Transmitter

For level measurement in wells, basins, and open tanks; includes ceramic measuring cell.

Call 1-800-884-4967 for pricing
Effective October 1st, 2025 VEGA has added a 9% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Part Number
  • VEGABAR 86
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Manual Product Specs

Features

  • 0 to 362.6 psi measuring range
  • -4 to 212°F process temperature
  • -40 to 176°F ambient temperature
  • 0.1% accuracy
  • Materials, wetted parts:
    • PVDF
    • 316L
    • FEP
    • PE
    • PUR
  • ≥ G1½, ≥ 1½ NPT threaded connection
  • ≥ DN 40, ≥ 2in flange connection
  • Seal material:
    • EPDM
    • FKM
    • FFKM
  • Housing material:
    • Plastic
    • Aluminum
    • Stainless steel (precision casting)
    • Stainless steel (electropolished)
  • Output:
    • Profibus PA
    • Foundation Fieldbus
    • 4 to 20mA
    • Two-wire: 4 to 20mA / HART
    • Modbus
    • Secondary electronics for electronic differential pressure
  • Protection rating:
    • IP66/IP68 (0.2bar)
    • IP66/IP67
    • IP66/IP68 (1bar)
    • IP66/IP68 (25bar)
    • IP69

The VEGA VEGABAR 86 Submersible Pressure Transmitter is specially optimized for the measurement of water, alkalis, acids and other chemically aggressive liquids. The VEGABAR 86 can be applied to multiple industries, from water level measurement in the wastewater sector to level measurement in the chemical industry or in food production. It can be combined with any other sensor of the VEGABAR Series 80 for electronic differential pressure measurement.

The VEGABAR 86 is ideal for:

  • Chemically stable level measurement in ultrapure water
  • Water level measurement with two suspension pressure transmitters for lock control
  • Maintenance-free level measurement in waste water shafts
