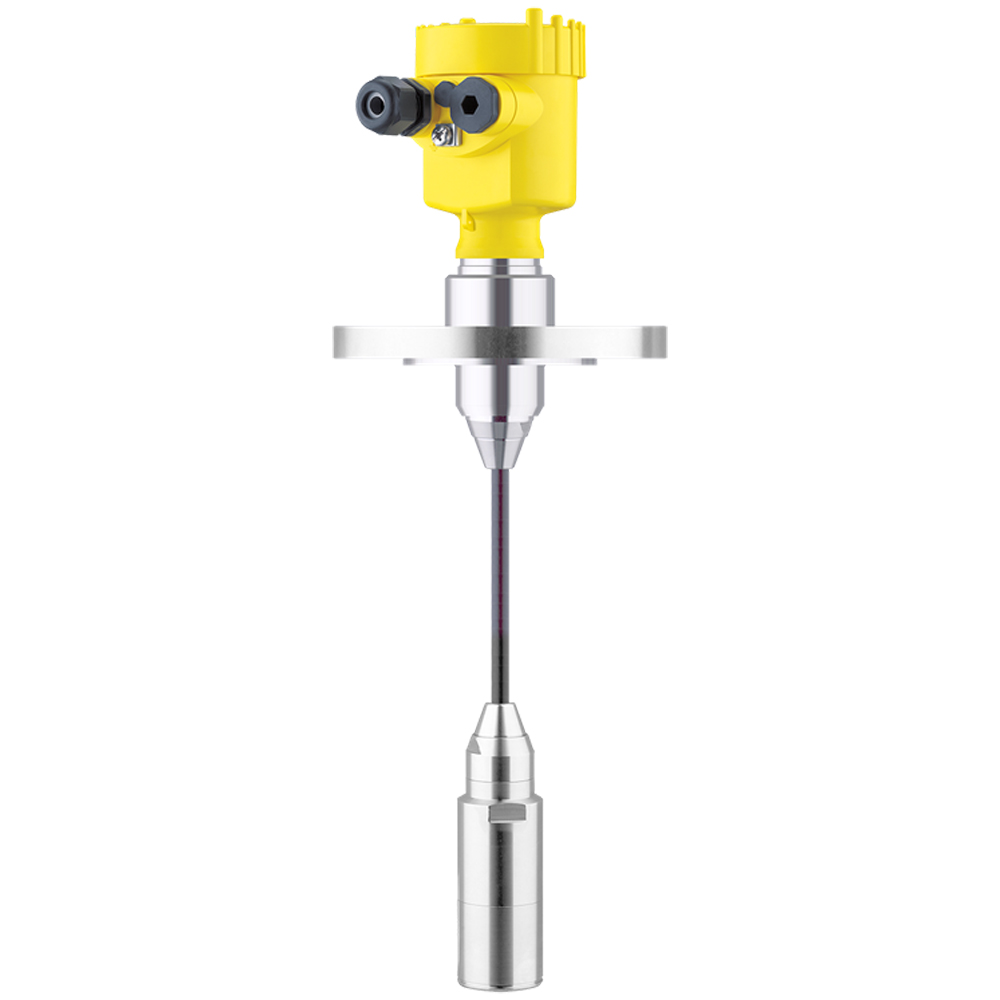

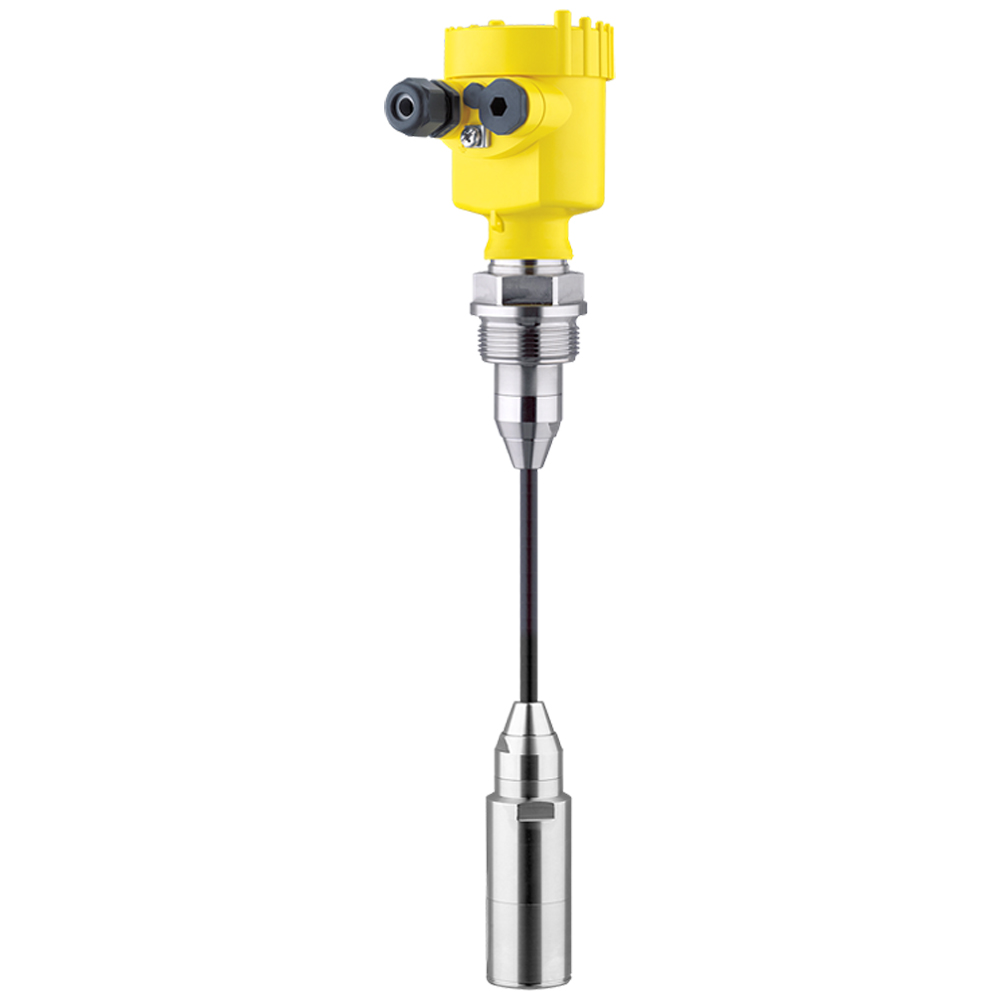

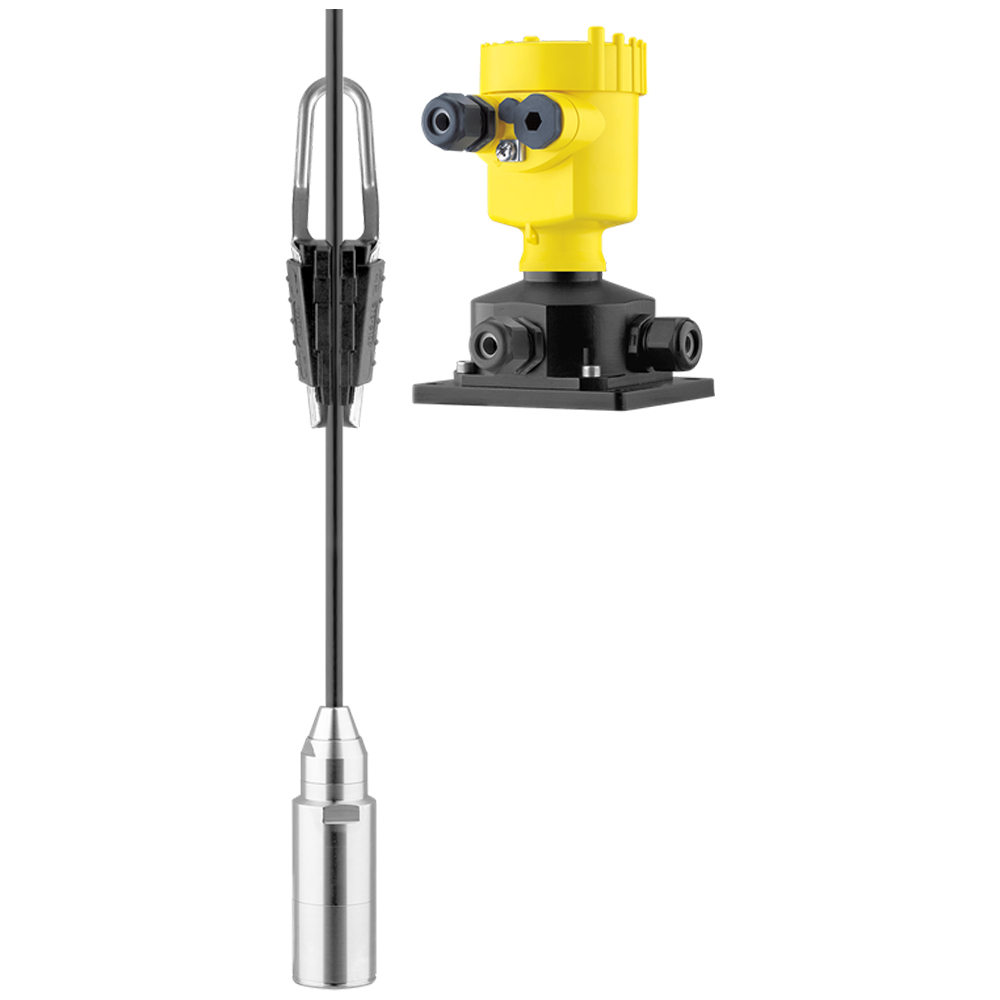

VEGA VEGABAR 87 Submersible Pressure Transmitter

For level measurement of liquids and corrosive media; includes metallic measuring cell.

Call 1-800-884-4967 for pricing
Effective October 1st, 2025 VEGA has added a 9% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Part Number
  • VEGABAR 87
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Manual Product Specs

Features

  • 0 to 362.6psi measuring range / process pressure
  • 10.4 to 212°F process temperature
  • -40 to 176 °F ambient temperature
  • 0.1% accuracy
  • Materials, wetted parts:
    • 316L
    • Duplex (1.4462)
    • FEP
  • ≥ G1½, ≥ 1½ NPT threaded connection
  • ≥ DN50, ≥ 2in flange connection
  • No media contact seal material
  • Housing material:
    • Plastic
    • Aluminum
    • Stainless steel (precision casting)
    • Stainless steel (electropolished)
  • Protection rating:
    • IP66 / IP68 (0.2bar)
    • IP66 / IP67
    • IP66 / IP68 (1bar)
    • IP69
  • Output:
    • Profibus PA
    • Foundation Fieldbus
    • 4 to 20mA
    • Two-wire: 4 to 20mA / HART
    • Modbus
    • Secondary electronics for electronic differential pressure

The VEGA VEGABAR 87 Submersible Pressure Transmitter is designed for pressure and level measurements of liquids and viscous products with higher temperatures in the chemical, food processing and pharmaceutical industry. It can be combined with any other sensor of the VEGABAR Series 80 for electronic differential pressure measurement. The VEGABAR 87 detects measuring ranges as low as 0.1bar. The robust mechanical configuration of the metallic measuring cell protects the sensor in the demanding measuring tasks found in various industries.

The VEGABAR 87 provides chemically stable level measurement in ultrapure water. Water level measurement is provided with two hydrostatic pressure sensors for lock control. The transmitter enables maintenance-free level measurement in waste water shafts.
