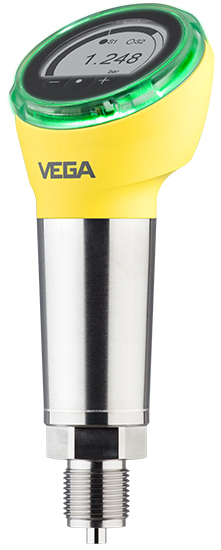

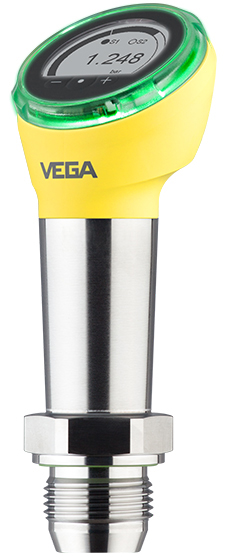

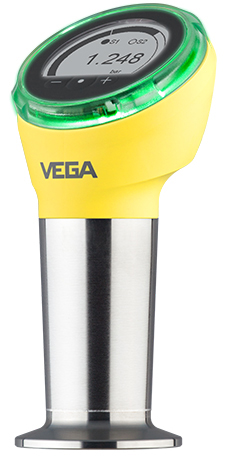

VEGA VEGABAR 38 Pressure Sensor

Universal pressure transmitter with ceramic measuring cell for measuring gases, vapors and liquids up to 130°C, IO-Link communication option for integration into control systems.

Starting at $595.00
Effective October 1st, 2025 VEGA has added a 9% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Manual Product Specs

Features

  • Ceramic measuring cell
  • -1 to 60 bar (-100 to 6000 kPa / -14.5 to 870 psig) measuring range
  • 0.1 bar (10 kPa / 1.45 psig) smallest measuring range
  • <0.3% deviation
  • 4-20mA output signal
  • Thread from G1/4, 1/4NPT, hygienic fittings from DN25 process fitting
  • -40 to 266°F (-40 to 130°C) process temperature
  • 302°F (150°C) with brief vapor stratification SIP process temperature
  • Bluetooth 5.0
  • Up to IP66/IP67 protection rating
  • Wireless setup and diagnostics with smartphone
  • Colored 360° status display, on-site operation with VDMA menu structure
  • Easy integration into control systems through IO-Link communication

The VEGA VEGABAR 38 pressure sensor is equipped with a switching function and ceramic measuring cell for measuring gases, vapors, and liquids. It is designed for applications requiring robustness, hygiene, and accurate pressure measurement. The device includes a display for local adjustment and a colored 360° switching-status indicator.

The VEGABAR 38 sensor uses a CERTEC ceramic measuring cell, which converts pressure into an electrical signal that the integrated electronics process into a standardized output. The wetted parts are available in 316L stainless steel, PVDF, duplex steel, PEEK, or sapphire-ceramic, with FKM, EPDM, or FFKM process seals depending on the process connection. Housing options include 316L stainless steel and PBT plastic, with protection classes up to IP66/IP67.

Electronics options include two-wire 4–20 mA, three-wire IO-Link, and versions with 4–20 mA and transistor outputs. Connections are available through ISO 4400 or M12 x 1 plugs, depending on the electronics configuration. An optional universal connection for hygienic adapters supports different process fittings, while Bluetooth enables wireless configuration and diagnostics.
