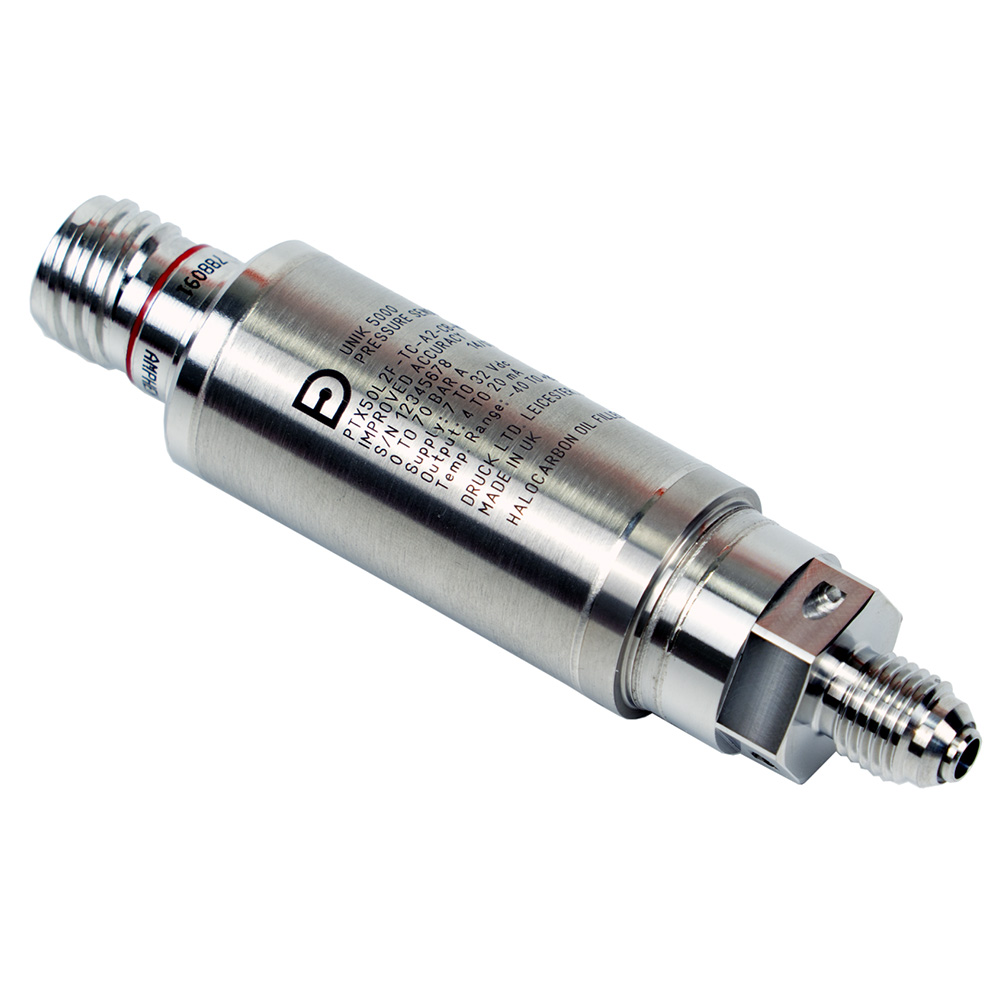

Druck UNIK5000F Oxygen Pressure Sensor
High-performance pressure sensor specifically engineered for oxygen-enriched applications, wetted materials compatible with oxygen systems.
Effective July 15th, 2026, Druck has added a 10% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By Druck
Overview
Features
- Pressure range up to 5000PSI/350bar for absolute and sealed gauge measurements
- Accuracy up to ±0.04% FS
- Long-term stability of ±0.05% FS typical per year
- Frequency response to 3.5 kHz
- Compensation temperature ranges from -40 to +80°C
- Power-up time less than 10ms
- Enclosure materials:
- Stainless steel (body)
- PTFE (vent filter)
- Glass filled nylon (electrical connector assemblies)
- Silicone rubber (O-ring in electrical connector assemblies)
Description
The Druck UNIK5000F Oxygen Pressure Sensor is a high-performance pressure sensor designed specifically for oxygen-enriched applications where safety, measurement integrity and long-term reliability are critical.
Built on Druck’s proven UNIK5000 platform, the UNIK5000F combines oxygen-compatible materials with advanced piezoresistive sensing technology to deliver accurate and stable pressure measurement in demanding environments. It incorporates oxygen-compatible wetted materials throughout the pressure system and uses Halocarbon fill fluid selected specifically for oxygen service. The sensor is supplied in a cleanable condition and can be incorporated into customer-defined oxygen cleaning processes when required.
Whether monitoring liquid oxygen storage, operating in Ground Support Equipment (GSE), supporting rocket propulsion testing, supplying launch-pad utilities or controlling oxygen generation facilities, the UNIK5000F provides dependable pressure measurement for mission-critical systems.
Applications:
- Liquid oxygen storage
- Transfer and loading systems
- High-pressure gas infrastructure
- Launch-pad utilities
- Rocket propulsion test facilities
- Oxygen generation plants
